神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (05-003) - PUMP ASSY, CONNECT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
590 次

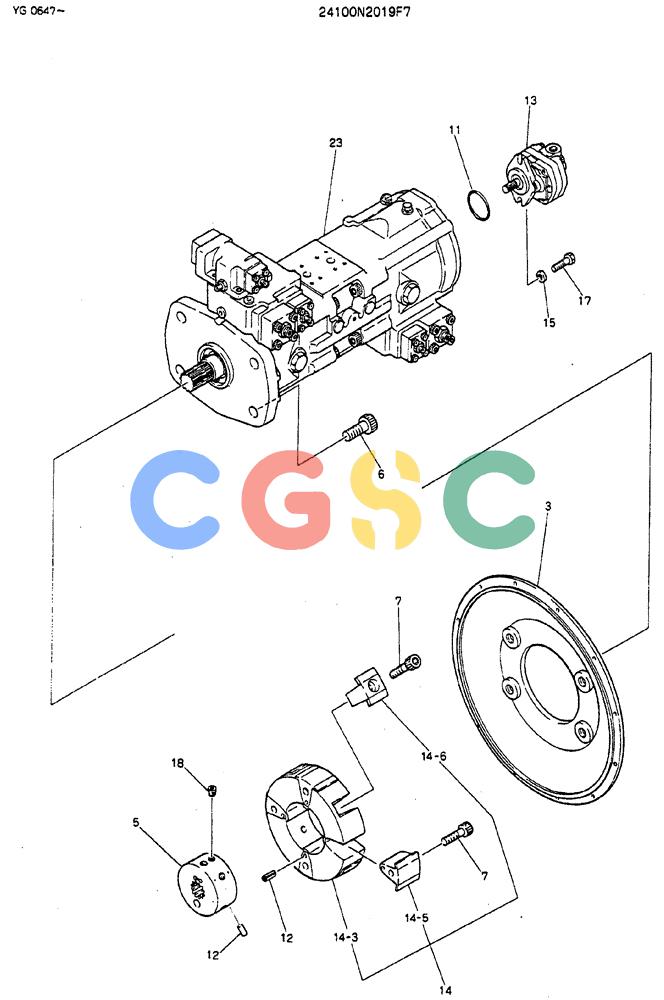

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2019F7 | [1] | PUMP | KOBPUMP ASSY, CONNECT |
| 3. | 2416N2168 | [1] | BRACKET | KOB |
| 5. | 2418P6740 | [1] | RING GEAR | KOB |
| 6. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 7. | ZS23C16050 | [8] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm |
| 11. | ZD12G05500 | [1] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO -- ID 54.40 ± 0.49 x OD 60mm |
| 12. | ZP26D05010 | [12] | PIN | KOBRoll -- OD 05 x 10mm Long |
| 13. | 2441U291F2 | [1] | HYDRAULIC PUMP | KOB |
| 14. | 2418R139F3 | [1] | COUPLING | KOB |
| 14-3. | 2418R139E3 | [1] | FLEXIBLE COUPLING | KOB Superseded by part number: LQ30P01003S001 |
| 14-5. | 2418R139S5 | [4] | INSERT | KOB |
| 14-6. | 2418R139S6 | [4] | INSERT | KOB |
| 15. | ZW11K10000 | [2] | WASHER | KOBID 10 x OD 18 x Th 2.0mm |
| 17. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 18. | ZS73C16025 | [2] | SET SCREW | KOBScrew, Set -- M16x2.0x25mm |
| 23. | 2437U172F1 | [1] | HYDRAULIC PUMP | KOB Superseded by part number: 2437U172F2 |
