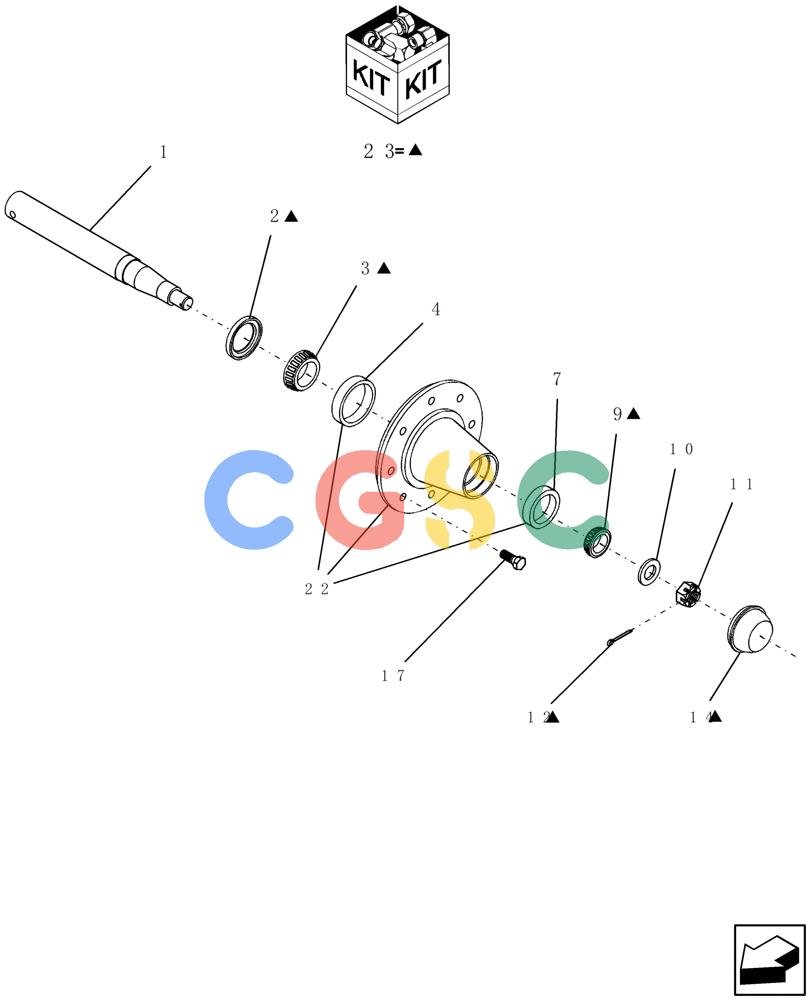

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (44.103.03) - FRONT HUB/SPINDLE ASSEMBLY - 8 BOLT HUB, 2" SPINDLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
364 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
87436722
|
[1] |
HUB
|
SAS
and spindle assembly H811 with 17 1/8" long spindle
|
| 1. |
87436667
|
[1] |
SPINDLE
|
SAS
s811 2 x 17.13 4340 htsr
|
| 2. |
491715R91
|
[1] |
OIL SEAL
|
IH
oil SE16
|
| 3. |
512725
|
[1] |
BEARING CONE,45.62mm ID x 25.4mm W
|
NH
#25590
|
| 4. |
86900365
|
[1] |
BEARING CUP,82.96mm OD x 19.05mm W
|
WIN
#25520
|
| 7. |
86516462
|
[1] |
BEARING CUP,73.03mm OD x 19.05mm W
|
WIN
#25821
|
| 9. |
86516471
|
[1] |
BEARING CONE,34.92mm ID x 24.61mm W
|
BAS
#25877
|
| 10. |
5871
|
[1] |
WASHER
|
FLX
1 1/64" id x 2" x 5/16"
|
| 11. |
86020752
|
[1] |
SLOTTED NUT
|
WIN
1"-14, G5
|
| 12. |
80754
|
[1] |
COTTER PIN,3/16" OD x 1-1/2" OAL
|
NH
|
| 14. |
87505192
|
[1] |
HUB CAP
|
SAS
dc17
|
| 17. |
G49036
|
[8] |
WHEEL BOLT
|
CAS
wheel 9/16"-18 x 1 1/4", G5, WB12 Superseded by part number: 522067R2
|
| 22. |
87505495
|
[1] |
HUB
|
SAS
H811-3 assembly with cups and zerk hole
|
| 23. |
6811
|
[1] |
WHEEL BEARING KIT
|
FLX
completion - h811
|
