凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (44.151.02) - LEFT REAR AXLES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
681 次

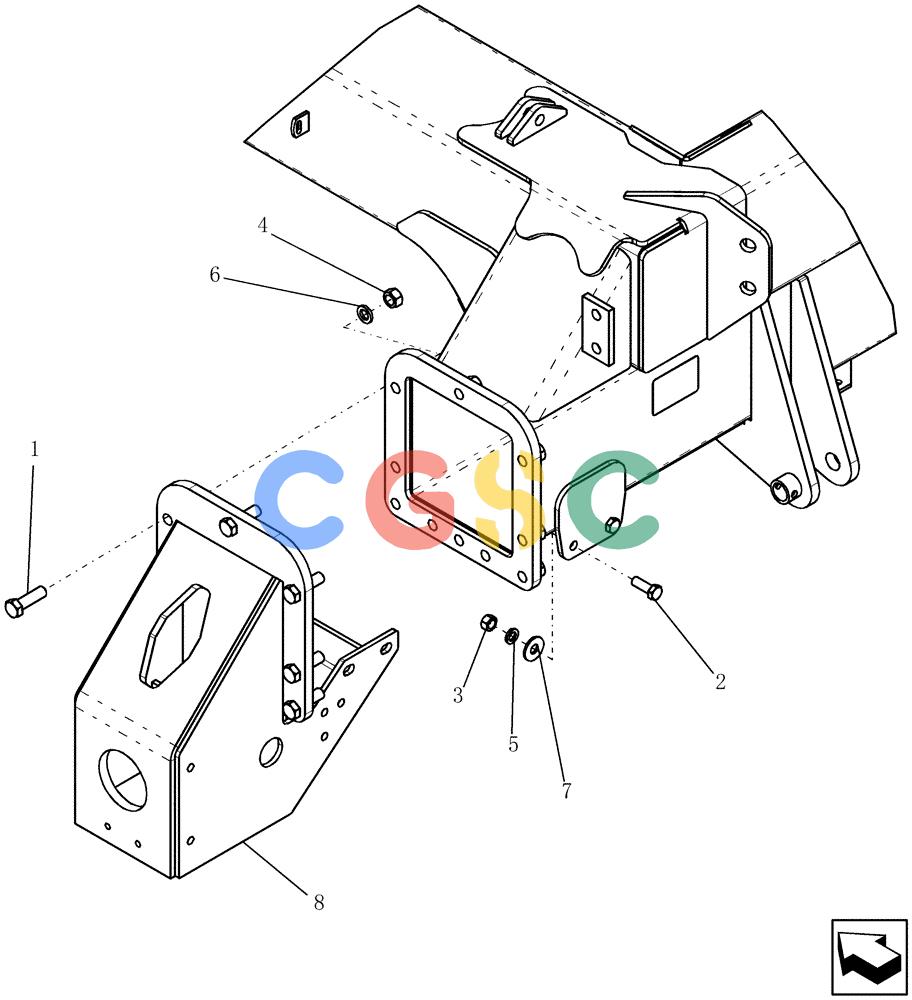

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9706701
|
[10] |
BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5
|
PA
|
| 2. |
9627896
|
[4] |
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5
|
NH
|
| 3. |
280374
|
[4] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
|
| 4. |
280954
|
[10] |
NUT,3/4"-10, G5
|
NH
|
| 5. |
12034871
|
[4] |
WASHER
|
ZED
5/8" Superseded by part number: 86729275
|
| 6. |
87340
|
[10] |
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
|
NH
|
| 7. |
80299
|
[4] |
WASHER,0.69" ID x 1.75" OD x 0.13" Thk
|
NH
|
| 8. |
87426807
|
[1] |
AXLE HOUSING
|
SAS
32" wheel 4.5"
|
