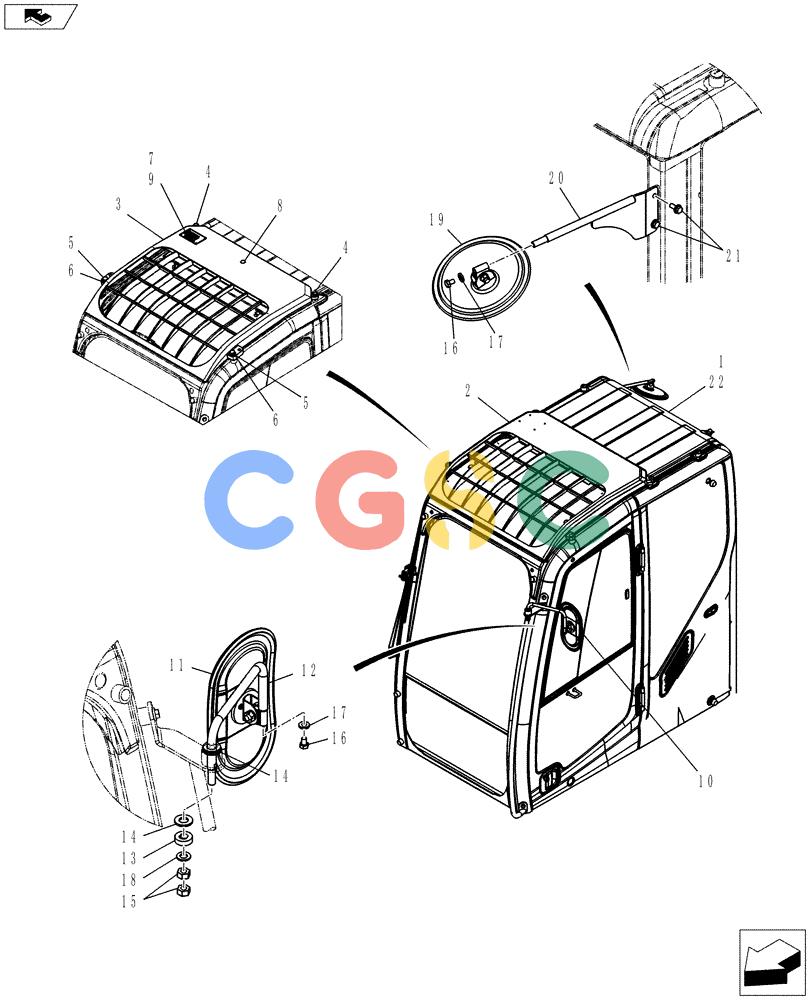

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-062[01]) - CAB INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
275 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02C00081F1 | [1] | | |
| 1. | YT02C00076F2 | [1] | | |
| 2. | LQ02C01212F3 | [1] | | |
| 3. | LQ02C01213P1 | [1] | GUARD | SM |
| 4. | ZM73C12035 | [2] | BOLT,M12x35mm - Course Thread | KOBSems |
| 5. | ZS18C16045 | [2] | SCREW,Hex, M16 x 45mm | KOBCap |
| 6. | ZW16H16000 | [2] | WASHER | KOB |
| 7. | 4020Z64 | [4] | RIVET | KOB Superseded by part number: 2420P623D7 |
| 8. | LQ02C01310P1 | [1] | PLATE | KOB |
| 9. | LQ20T01347P1 | [1] | Number | |
| 10. | YT52C00020F1 | [1] | TELESCOPIC REAR VIEW CAB MIRRORS | KOBMirror Instal |
| 11. | PY02C01079P1 | [1] | MIRROR | KOBAssy., Back |
| 12. | LQ52C01026P1 | [1] | STAY | SM |
| 13. | LQ52C01025P1 | [1] | WASHER | SM |
| 14. | LQ52C01021P1 | [2] | WASHER | SM |
| 15. | ZN18C12010 | [2] | NUT | KOB |
| 16. | ZS18C08012 | [2] | SCREW,Hex, M8 x 12mm | KOBCap |
| 17. | ZW16H08000 | [2] | WASHER | KOB |
| 18. | ZW16P12000 | [1] | WASHER | KOB |
| 19. | YT52C00006P1 | [1] | MIRROR,210mm x 210mm | KOB |
| 20. | YT52C01076P1 | [1] | STAY | KOB |
| 21. | ZM73C08020 | [2] | BOLT,M8x20mm - Course Thread | KOBSems |
| 22. | YT02C00077F2 | [1] | CAB | KOBAssy. |
