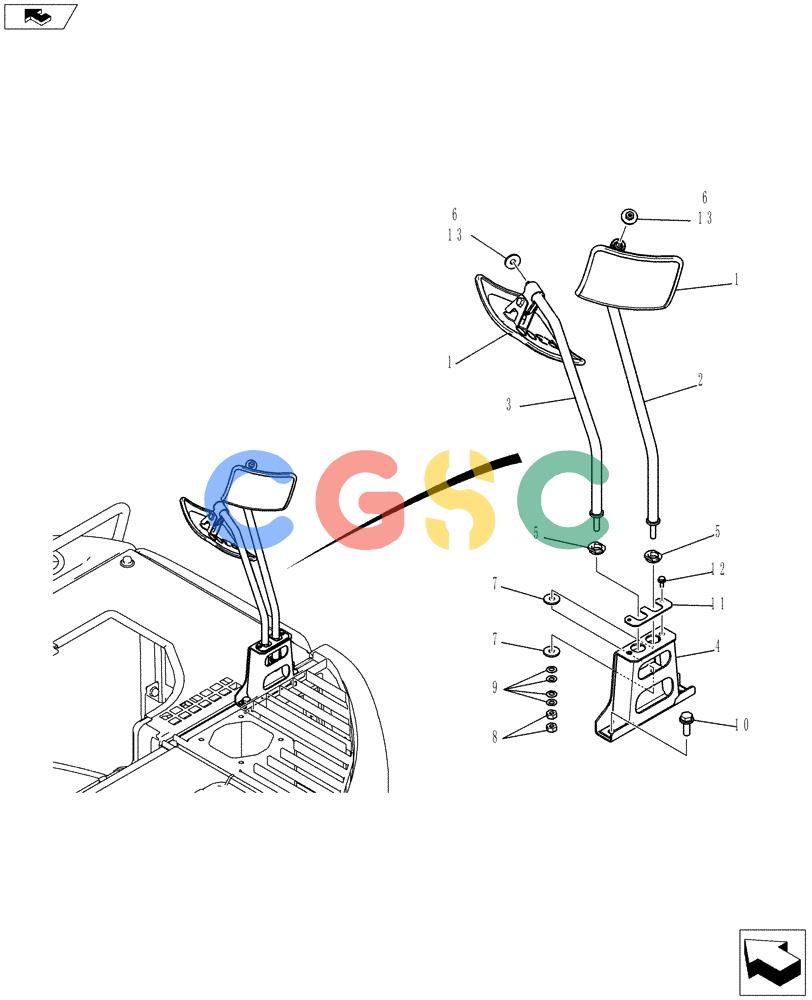

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-059[00]) - MIRROR INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT52C00018F1 | [1] | | |
| 1. | YF52C00007P1 | [2] | MIRROR | KOB |
| 2. | YT52C01043P1 | [1] | STAY | KOB |
| 3. | YT52C01044P1 | [1] | STAY | KOB |
| 4. | YT52C01040P1 | [1] | BRACKET | KOB |
| 5. | YT52C01075P1 | [2] | BUSHING | KOB |
| 6. | ZN18C08007 | [2] | NUT | KOB |
| 7. | 2418T12346 | [4] | WASHER | KOB |
| 8. | ZN18C10008 | [4] | NUT | KOB |
| 9. | R16T0137D3 | [8] | WASHER | KOB |
| 10. | ZM73C12035 | [2] | BOLT,M12x35mm - Course Thread | KOBSems |
| 11. | YT52C01074P1 | [1] | PLATE | KOB |
| 12. | ZM73C06016 | [2] | BOLT,M6x16mm - Course Thread | KOBSems |
| 13. | 2418T12753 | [2] | WASHER | KOB |
