神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (06-001) - INSTAL, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
575 次

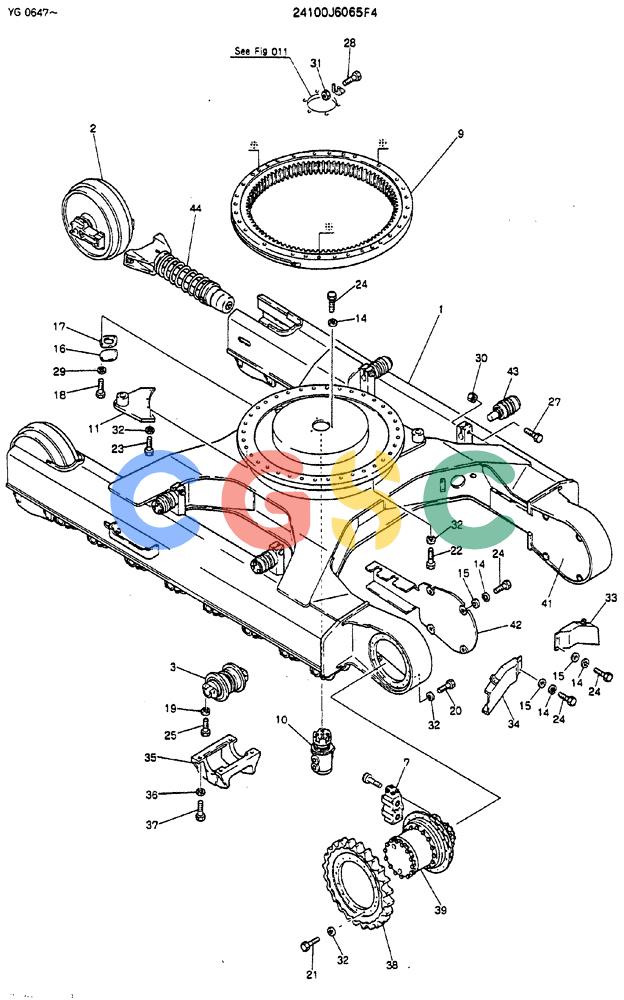

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6065F4 | [1] | INSTAL, LOW | |
| 1. | 2422J1449 | [1] | FRAME, LOW | |
| 2. | 24100N2885F2 | [2] | IDLER WHEEL | KOBSEE FIGURE 06-002 |
| 3. | 24100N2156F4 | [16] | TRACK ROLLER | KOBSEE FIGURE 06-003 |
| 7. | 2436U1139F2 | [2] | BRAKE VALVE | KOB |
| 9. | 24100N2888F1 | [1] | BEARING ASSY | KOBSEE FIGURE 06-007 |
| 10. | 24100J5144F1 | [1] | FLEXIBLE JOINT | KOB Superseded by part number: 24100J5144F3 |
| 11. | 2416P8583 | [2] | BRACKET | BRACKET |
| 14. | ZW22X12000 | [19] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 15. | ZW11X12000 | [16] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 16. | 2418T12125 | [1] | PLATE | KOB Superseded by part number: YN52F01159P1 |
| 17. | 2416Z434 | [1] | PACKING | KOBRubber |
| 18. | ZS13C10020 | [2] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 19. | ZW13H16000 | [64] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 20. | ZS13C20070 | [32] | SCREW | KOBM20x2.50x70mm |
| 21. | ZS13C20060 | [32] | SCREW | KOBM20x2.50x60mm |
| 22. | ZS13F20070 | [28] | SCREW | KOBM20x1.50x70mm |
| 23. | 2420T4448D1 | [8] | SCREW | KOB |
| 24. | ZS13C12025 | [19] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 25. | ZS13F16080 | [64] | SCREW | KOBM16x1.50x80mm |
| 27. | ZS13C20100 | [4] | SCREW | KOBM20x2.50x100mm |
| 28. | ZS13C16110 | [1] | SCREW | KOBM16x2.0x110mm |
| 29. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 30. | ZN12C20016 | [4] | NUT | KOBM20x2.50mm |
| 31. | ZN12C16010 | [1] | NUT | KOB |
| 32. | ZW13H20000 | [100] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 33. | 2414N1915D1 | [1] | COVER | |
| 34. | 2414N1915D2 | [1] | COVER | |
| 35. | 2422N822 | [2] | GUIDE | KOB |
| 36. | R16T0152D13 | [8] | WASHER | KOBFlat -- ID 19 x OD 40 x Th 4.5mm |
| 37. | ZS13C18050 | [8] | SCREW | KOBM18x2.0x50mm |
| 38. | 2404N246 | [2] | DRIVING SPROCKET | KOB |
| 39. | 24100X1996F2 | [2] | HYDRAULIC MOTOR | KOBSEE FIGURE 06-006 |
| 41. | 2414N1959D1 | [1] | COVER | COVER |
| 42. | 2414N1959D2 | [1] | COVER | |
| 43. | 24100N2961F3 | [4] | TRACK ROLLER | KOBSEE FIGURE 06-004 |
| 44. | 24100N2886F2 | [2] | SPRING ASSY, TRACK SEE FIGURE 06-005 | SPRING ASSY, TRACK SEE FIGURE 06-005 |
