神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (06-002) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
201 次

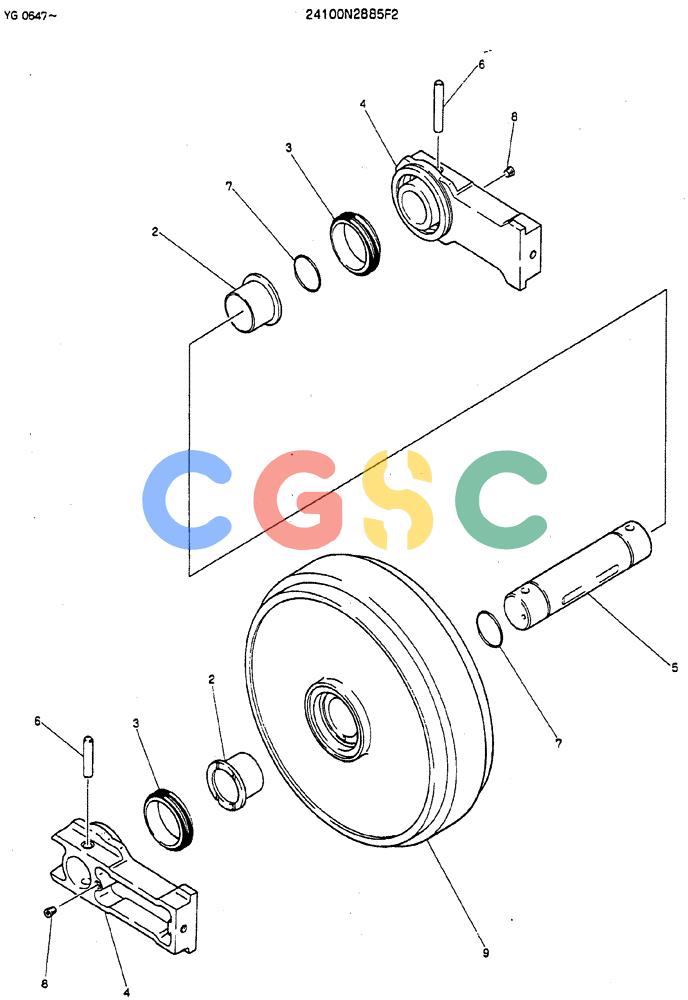

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2885F2 | [1] | IDLER WHEEL | KOBSEE FIGURE 06-002, SEE FIGURE 06-001 |
| 2. | 2405T103S | [2] | BUSHING | |
| 3. | 2445Z1110 | [2] | FLOAT | KOB |
| 4. | 2416N2821 | [2] | SLIDE VALVE | KOB |
| 5. | 2419P1634 | [1] | ROLLER SHAFT | KOBSHAFT Superseded by part number: 2410P831 |
| 6. | 2419T2668D2 | [2] | PIN | KOB Superseded by part number: 2419T6351 |
| 7. | ZD11G06500 | [2] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOB |
| 8. | ZE82T02000 | [2] | PLUG | KOBPipe, 1.25" PT |
| 9. | 2413N377C2 | [1] | WHEEL ASSY | KOB |
