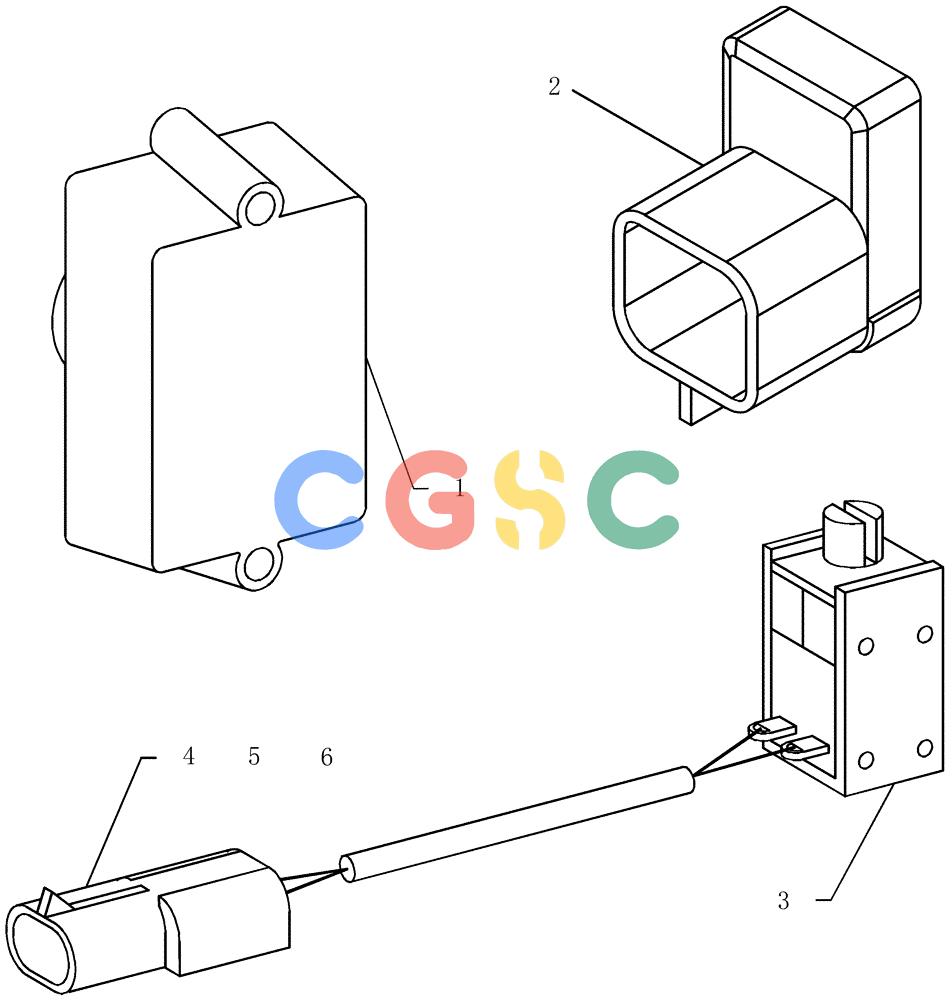

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (55.100.06) - CABLE TERMINATOR/CLUTCH SOLENOID Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
393 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
425049A1
|
[1] |
MODULE
|
FLX
terminator passive (Black)
|
| 2. |
87601142
|
[1] |
ELEC CONNECTOR,Female, 6 Cavities
|
PLO
electronic control unit
|
| 3. |
51200032
|
[1] |
SOLENOID
|
FLX
assembly, clutch
|
| 4. |
87692877
|
[1] |
MULTIPOLE CONNECTOR,Male, 2 Cavities
|
BN
plastic 2c receptacle
|
| 5. |
225120C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
18-20awg
|
| 6. |
225124C1
|
[2] |
SEAL,2 - 2.9 mm2
|
IH
seal grn 2.8-2 omm Superseded by part number: 84286327
|
