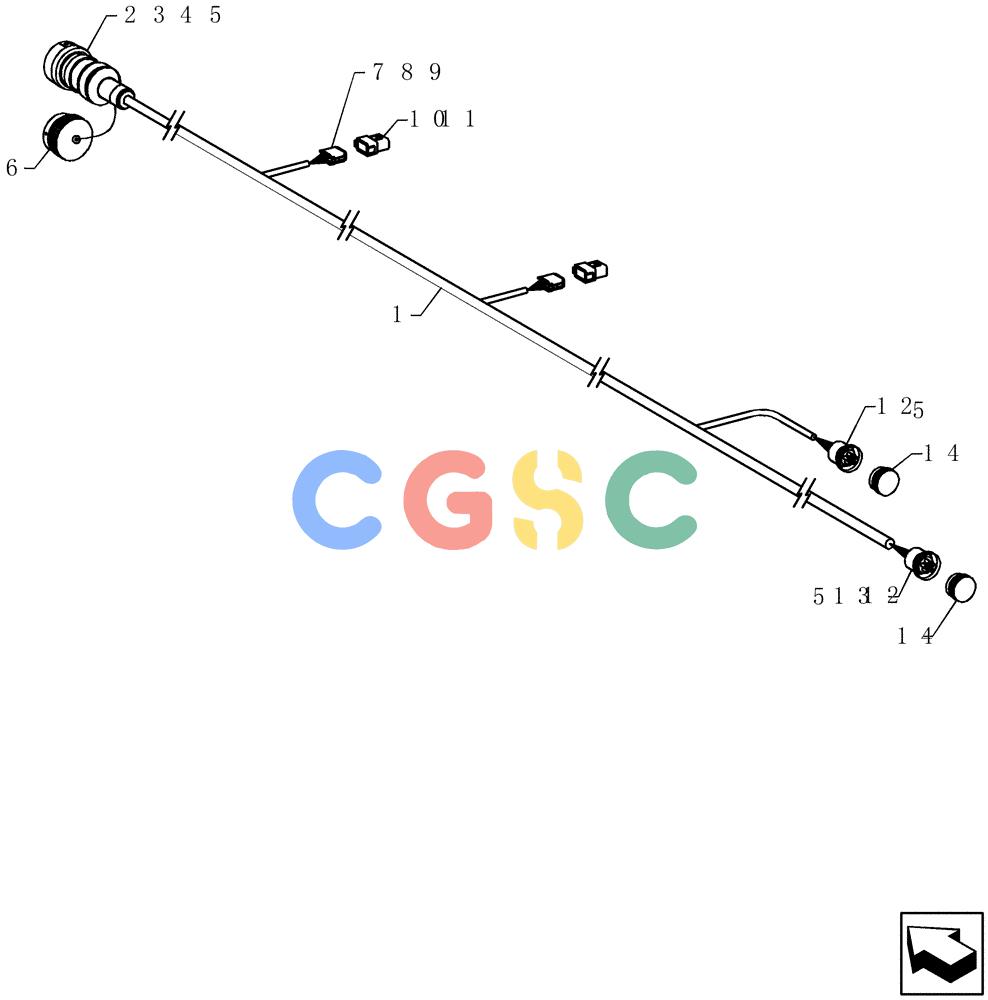

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (55.100.08) - TOW BETWEEN SEED TOOL HARNESS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
803 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14044V2
|
[1] |
HARNESS
|
SAS
seedtool 10.8 m tow between, Serial Range: -Y8S015000 Superseded by part number: 84368482
|
| 1. |
84368482
|
[1] |
WIRE HARNESS
|
SAS
Seedtool, TBT, 10.7m, Start Serial: Y8S015001
|
| 2. |
279043A1
|
[1] |
ELEC CONNECTOR,Female, 9 Pin
|
CAS
metal 9c plug, Serial Range: -84368482 Superseded by part number: 87703855
|
| 3. |
425083A1
|
[2] |
POWER SOCKET
|
FLX
contact socket 8-10 Deutsch
|
| 4. |
900302
|
[2] |
TERMINAL
|
NH
12-14awg Superseded by part number: 87697875
|
| 5. |
86500036
|
[14] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
16-18awg
|
| 6. |
788614
|
[1] |
PROTECTING COVER
|
NH
dust 23 con rcp Deutsch
|
| 7. |
87700156
|
[1] |
CONTACT HOUSING,Female, 12 Pole
|
BN
Deutsch 12 way dtm plug, grey
|
| 8. |
223952A1
|
[12] |
ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm
|
CAS
socket 18-20awg Superseded by part number: 87696954
|
| 9. |
223674A1
|
[1] |
WEDGE
|
CAS
lock 12c plug Superseded by part number: 87705198
|
| 10. |
223672A1
|
[1] |
MULTIPOLE CONNECTOR,Male, 12 Pin
|
CAS
elec plastic 12c receptacle Superseded by part number: 87700155
|
| 11. |
225055C1
|
[12] |
PLUG
|
IH
connector 20awg
|
| 12. |
425050A1
|
[2] |
ELEC CONNECTOR,Female, 6 Pin
|
FLX
plastic 6c plug Superseded by part number: 87706941
|
| 13. |
225404C1
|
[2] |
POWER SOCKET,Nickel, 1.0 - 2.0mm
|
CAS
socket 14-16awg
|
| 14. |
14045
|
[2] |
DUST CAP
|
FLX
6 cond rcp Deutsch
|
