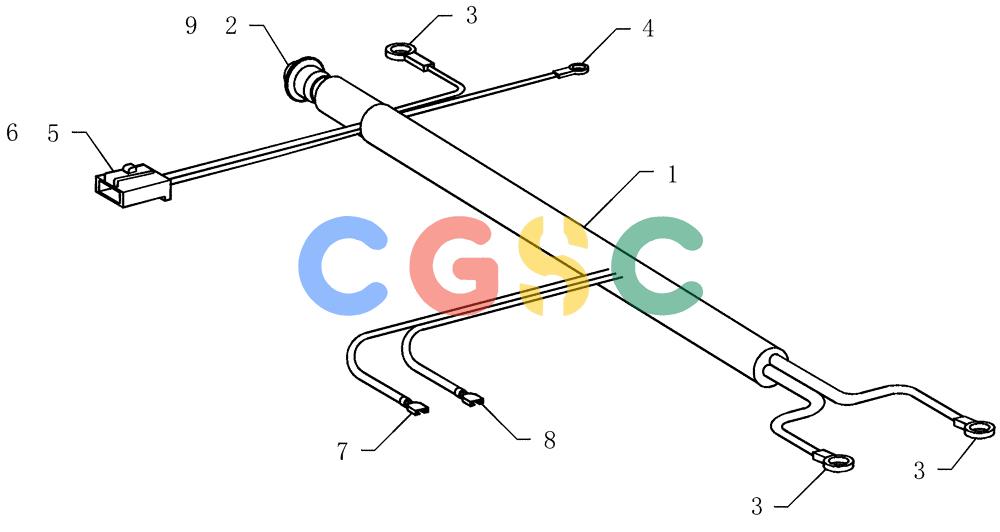

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (55.100.14) - ALTERNATOR HARNESS, VARIABLE DRIVE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
885 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
419982A1
|
[1] |
HARNESS
|
FLX
alternator VR air cart
|
| 2. |
425053A1
|
[1] |
LENS
|
FLX
indicator round red
|
| 3. |
425051A1
|
[3] |
RING
|
FLX
terminal 10-12awg 1/2 yellow
|
| 4. |
425052A1
|
[1] |
RING
|
FLX
terminal 10-12 1/4" yellow
|
| 5. |
402314C1
|
[1] |
CONNECTION
|
IH
elec plastic plug 2c
|
| 6. |
87505179
|
[2] |
SOCKET
|
SAS
18-20awg
|
| 7. |
425044A1
|
[1] |
TERMINAL CONNECTOR,22 - 18 SAE
|
FLX
terminal disc 22-18awg 1/4" f
|
| 8. |
225185C1
|
[1] |
TERMINAL CONNECTOR
|
CAS
disc 12-10awg
|
| 9. |
86000377
|
[1] |
BULB
|
WIN
C2F, #1893, 14V
|
