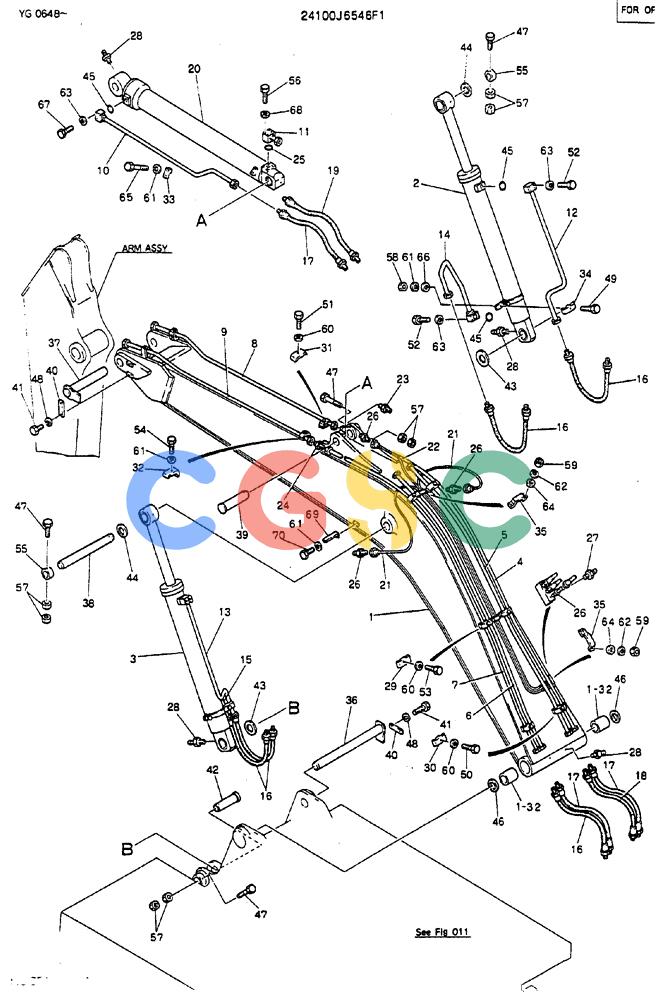

| . . | 24100J6546F1 | [1] | BOOM ASSY (For OPT) | |
| 1. | 2411J1763F1 | [1] | BOOM ASSY, 5.5M | BOOM ASSY, 5.5M |
| 1-32. | 2405T984 | [2] | BUSHING | KOB |
| 2. | 2438U980F1 | [1] | CYLINDER | KOB(R.H) |
| 3. | 2438U981F1 | [1] | CYLINDER ASSY (L.H) | CYLINDER ASSY (L.H) |
| 4. | 2418T12136 | [1] | TUBE | TUBE |
| 5. | 2418T12131 | [1] | TUBE | KOB |
| 6. | 2418T12135 | [1] | TUBE | KOB |
| 7. | 2418T12137 | [1] | TUBE | TUBE |
| 8. | 2418T12134 | [1] | TUBE | KOB |
| 9. | 2418T12138 | [1] | TUBE | KOB |
| 10. | 2418T12133 | [1] | RIGID TUBE | KOB |
| 11. | 2418T12132 | [1] | RIGID TUBE | KOB Superseded by part number: 2418P22218 |
| 12. | 2418P9997D1 | [1] | TUBE | KOB |
| 13. | 2418P9997D2 | [1] | RIGID TUBE | KOB |
| 14. | 2418P9998D1 | [1] | TUBE | KOB |
| 15. | 2418P9998D2 | [1] | RIGID TUBE | KOB |
| 16. | ZX28N10080 | [5] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2444R1169D2 |
| 17. | ZX28N12080 | [3] | HOSE ASSY. | KOB |
| 18. | 2444Z2282 | [1] | FLEXIBLE HOSE | KOB |
| 19. | 2444Z2283 | [1] | HOSE | KOBHOSE Superseded by part number: 2444R1175D1 |
| 20. | 2438U982F1 | [1] | CYLINDER | KOB |
| 21. | 2420R349D310 | [2] | HOSE | KOB3100mm Long (122-3/64 in) Superseded by part number: HX21E04310DX |
| 22. | 2420R349D16 | [1] | HOSE | KOBHOSE 160mm Long (6-9/32 in) Superseded by part number: HX21E04330DX |
| 23. | ZA23B28000 | [1] | CONNECTION | KOBM36x1.50x43mm Long |
| 24. | ZA23B22000 | [1] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 25. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 26. | ZH22Z04000 | [6] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 27. | ZG91U02000 | [3] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 28. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 29. | 2432T2242 | [3] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 30. | 2432T2243 | [3] | CLAMP | KOB |
| 31. | ZC26X28014 | [2] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 32. | ZC26X22011 | [2] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 33. | 2432T1187 | [1] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 34. | 2432T2244 | [2] | CLAMP | KOBDouble -- 102x32x12mm (Ø23xØ23mm) |
| 35. | 2416T3655 | [3] | CLAMP | KOB |
| 36. | 2419T3830 | [1] | PIN | KOB |
| 37. | 2419T3828 | [1] | PIN | KOB |
| 38. | 2419P1552 | [1] | PIN | KOB |
| 39. | 2419P1547D1 | [1] | PIN | KOB |
| 40. | 2418T12469 | [2] | PLATE | KOB150 x 50 x Th 12mm, 2-Ø16 Holes |
| 41. | ZS13C14030 | [4] | SCREW | KOBM14x2.0x30mm Superseded by part number: ZS18C14030 |
| 42. | 2419P1551D2 | [2] | PIN | KOB |
| 43. | B16T0442D2 | [2] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 44. | B16T0442D4 | [2] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 45. | ZD12P02600 | [5] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 46. | 2445R220D4 | [2] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm Superseded by part number: 84499640 |
| 47. | 2420T4004D1 | [5] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm |
| 48. | ZW22X14000 | [4] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 49. | ZS13C10060 | [2] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 50. | ZS13C12050 | [4] | SCREW | KOBM12x1.75x50mm Superseded by part number: ZS18C12050 |
| 51. | ZS13C12055 | [2] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 52. | ZS23C10045 | [16] | SCREW,Hex Socket Head, M10 x 45mm | KOBM10x1.50x45mm |
| 53. | ZS13C12045 | [3] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 54. | ZS13C10045 | [2] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 55. | 2411T1275 | [2] | COLLAR | COLLAR |
| 56. | ZS23C12090 | [4] | CAPSCREW,Hex Socket Head, M12 x 90mm | KOBSCREW M12x1.75x90mm |
| 57. | ZN12C16013 | [10] | NUT | KOBM16x2.0mm |
| 58. | ZN12C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 59. | ZN11C06005 | [6] | NUT | KOBNUT M06x1.0mm Superseded by part number: ZN18C06005 |
| 60. | ZW22X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 61. | ZW22X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 62. | ZW22X06000 | [6] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 63. | ZW22K10000 | [20] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 64. | ZW11X06000 | [6] | WASHER | KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 65. | ZS13C10050 | [1] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 66. | ZW11X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 67. | ZS23C10070 | [4] | SCREW,Hex Socket Head, M10 x 70mm | KOBM10x1.50x70mm Superseded by part number: ZS28C10070 |
| 68. | ZW22K12000 | [4] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 69. | 2416T13056 | [1] | BRACKET | KOB |
| 70. | ZS13C10018 | [3] | SCREW | KOBM10x1.50x18mm |
