神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (07-003) - ARM ASSY, 2.9M Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
788 次

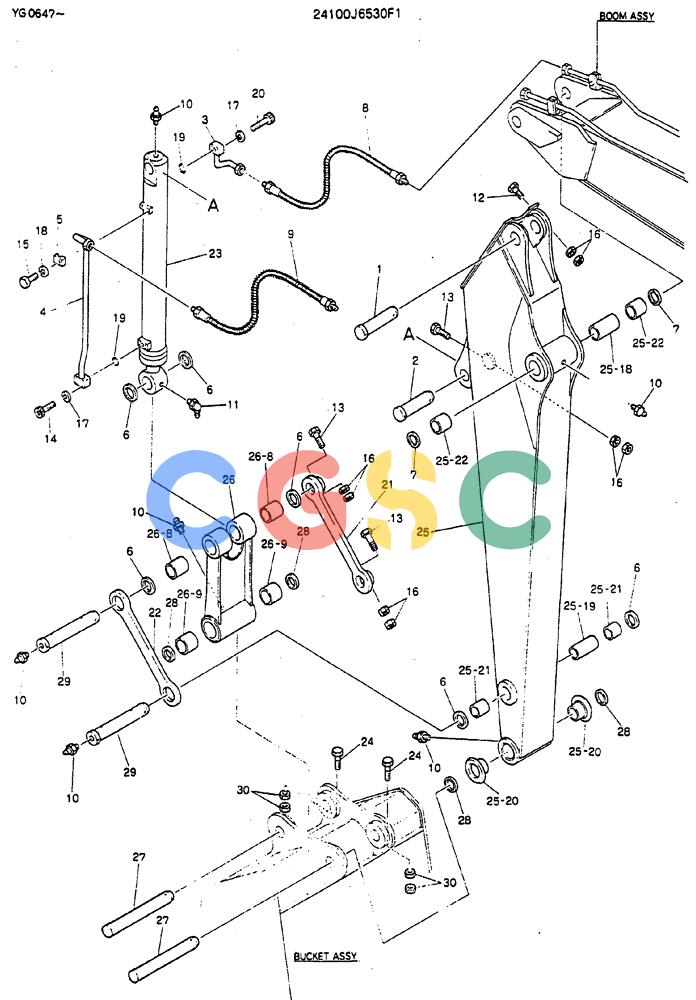

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6530F1 | [1] | ARM ASSY | |
| 1. | 2419P1547D1 | [1] | PIN | KOB |
| 2. | 2419P1548D3 | [1] | PIN | KOB |
| 3. | 2418T12144 | [1] | RIGID TUBE | KOB |
| 4. | 2418T12143 | [1] | RIGID TUBE | KOB |
| 5. | 2432T1333 | [1] | CLAMP | KOBSingle Block -- 50x30x25mm Superseded by part number: YW43H01049P1 |
| 6. | 2445R138D6 | [6] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 7. | 2445R220D4 | [2] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm Superseded by part number: 84499640 |
| 8. | ZX58N12130 | [1] | HOSE | KOB |
| 9. | ZX58N10130 | [1] | FLEXIBLE HOSE | KOB1300mm Long (51-3/16 in) |
| 10. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 11. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 12. | ZS13C16140 | [1] | SCREW | KOBM16x2.0x140mm |
| 13. | ZS13C16130 | [3] | SCREW | KOB |
| 14. | ZS23C10060 | [4] | SCREW,Hex Socket Head, M10 x 60mm | KOBM10x1.50x60mm |
| 15. | ZS13C10045 | [1] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 16. | ZN12C16013 | [8] | NUT | KOBM16x2.0mm |
| 17. | ZW22K10000 | [8] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 18. | ZW22X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 19. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 20. | ZS23C10070 | [4] | SCREW,Hex Socket Head, M10 x 70mm | KOBM10x1.50x70mm Superseded by part number: ZS28C10070 |
| 21. | 2406P2545D1 | [1] | LINK CONROD | KOB |
| 22. | 2406P2545D2 | [1] | LINK CONROD | KOB |
| 23. | 2438U915F1 | [1] | CYLINDER | KOB |
| 24. | ZS13F18160 | [2] | BOLT | BOLT |
| 25. | 2411J2738F1 | [1] | ARM | |
| 25-18. | 2418T10837 | [1] | SPACER | KOB |
| 25-19. | 2418T17578 | [1] | SPACER | KOB |
| 25-20. | 2405T1280 | [2] | BUSHING | KOB |
| 25-21. | B05T0041C2 | [2] | BUSHING | KOB |
| 25-22. | B05T0009C2 | [2] | BUSHING | KOB |
| 26. | 2406N796F1 | [1] | LINK | KOB |
| 26-8. | 2405T1285 | [2] | BUSHING | KOB |
| 26-9. | 2405T1279 | [2] | BUSHING | KOB |
| 27. | 2419T4763 | [2] | PIN | KOB |
| 28. | 2445R372D7 | [4] | SEAL | KOB |
| 29. | 2419P2580 | [2] | PIN | KOB |
| 30. | ZN13F18015 | [4] | NUT | |
