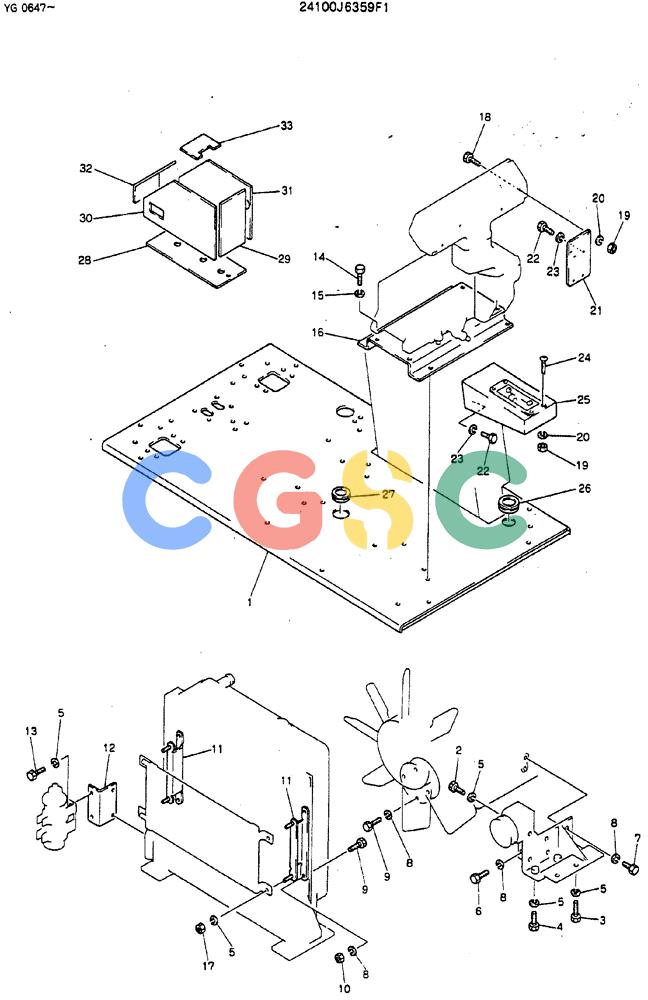

神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (08-006) - CONDITIONER ASSY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
480 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6359F1 | [1] | CONDITIONER ASSY, AIR | |
| 1. | 2422P665 | [1] | REWORK, FLOOR PLATE | |
| 2. | ZS13C08025 | [2] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 3. | ZS13C08035 | [2] | SCREW | KOBM08x1.25x35mm Superseded by part number: ZS18C08035 |
| 4. | ZS13C08055 | [2] | SCREW | KOBM08x1.25x55mm Superseded by part number: ZS18C08055 |
| 5. | ZW22X08000 | [12] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 6. | ZS13C10022 | [2] | CAPSCREW M10x1.50x22mm | CAPSCREW M10x1.50x22mm |
| 7. | ZS13C10040 | [4] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 8. | ZW22X10000 | [14] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 9. | ZS13F10040 | [8] | CAPSCREW | |
| 10. | ZN13F10008 | [4] | NUT | KOB Superseded by part number: ZN18F10008 |
| 11. | 2416P8673 | [2] | BRACKET | |
| 12. | 2416P8680 | [1] | BRACKET | |
| 13. | ZS13C08020 | [2] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 14. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 15. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 16. | 2416T13202 | [1] | BRACKET | |
| 17. | ZN13C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 18. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 19. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 20. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 21. | 2416T13201 | [2] | SUPPORT | |
| 22. | ZS18C06016 | [12] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 23. | ZW26X06000 | [12] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 24. | ZS31C08014 | [4] | MACHINE SCREW M08x1.25x14mm | MACHINE SCREW M08x1.25x14mm |
| 25. | 2416P8642 | [1] | BOX | |
| 26. | 2420Z1189 | [1] | GROMMET | KOB |
| 27. | 2420Z1617 | [1] | PLUG | KOB |
| 28. | 2414Z276 | [1] | INSULATION, HEAT | |
| 29. | 2414Z277 | [1] | INSULATION, HEAT | |
| 30. | 2414Z278 | [1] | INSULATION, HEAT | |
| 31. | 2414Z279 | [1] | INSULATION, HEAT | |
| 32. | 2414Z280 | [1] | INSULATION, HEAT | |
| 33. | 2414Z281 | [1] | INSULATION, HEAT | |
