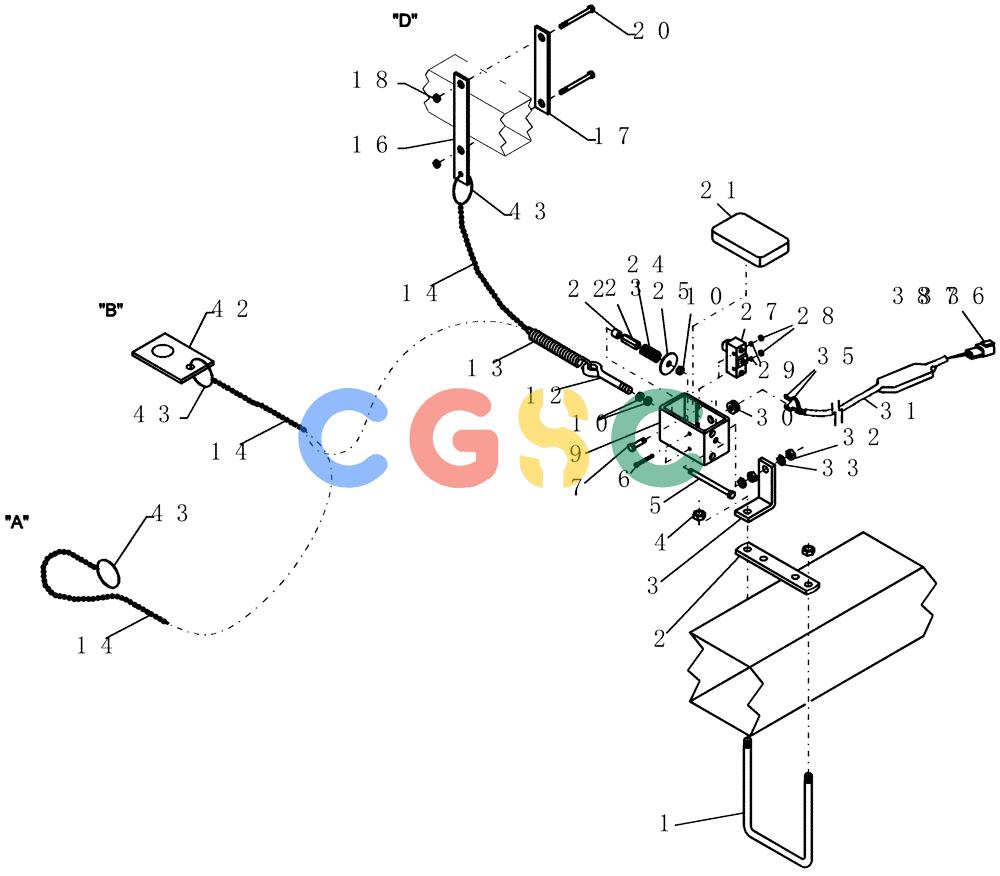

| 0. |
86987949
|
[1] |
SERVICE KIT
|
SAS
assembly, remote
|
| 1. |
419990A1
|
[1] |
U-BOLT
|
FLX
us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread
|
| 2. |
GH-879
|
[1] |
BRACKET
|
FLX
u-bolt mount
|
| 2. |
GK-208
|
[1] |
PLATE
|
FLX
bolt
|
| 3. |
GH-878
|
[1] |
BRACKET
|
FLX
remote switch
|
| 4. |
281010
|
[2] |
LOCK NUT,7/8"-14, GC
|
BAS
|
| 5. |
280317
|
[1] |
BOLT,Hex, 1/4" - 20 x 3", Gr 5
|
WIN
|
| 6. |
8435
|
[2] |
SCREW,#6 - 32 x 1.25"
|
FLX
mch #6-32" x 1 1/4" rh slt
|
| 7. |
87657
|
[1] |
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5
|
NH
|
| 10. |
7770
|
[3] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
| 12. |
432633A1
|
[1] |
EYEBOLT
|
FLX
1/4" x 2 1/2" G2 bent
|
| 13. |
8596
|
[1] |
TENSION SPRING
|
FLX
.08" Wire x .75" OD x 9" long
|
| 14. |
GH-890
|
[1] |
CHAIN (AG)
|
FLX
#8 zinc plated 24" long
|
| 16. |
351461A1
|
[1] |
PLATE
|
FLX
workswitch bracket
|
| 17. |
351460A1
|
[1] |
PLATE
|
FLX
workswitch mount
|
| 18. |
88902
|
[1] |
NUT,3/8"-16
|
NH
|
| 20. |
280161
|
[1] |
BOLT,Hex, 3/8" - 16 x 3", Gr 5
|
NH
|
| 20. |
87936
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
|
NH
|
| 20. |
9706689
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
|
PA
|
| 21. |
86987825
|
[1] |
CAP
|
SAS
poly remote switch 4-3/8" x 2-3/8"
|
| 22. |
8602
|
[1] |
SPACER
|
FLX
.332" od x 1/4" id x 3/8" long
|
| 23. |
8600
|
[1] |
PIPE UNION NUT
|
FLX
coupling 1/4"-20 x 7/8", G2
|
| 24. |
8603
|
[1] |
COMPRESSION SPRING
|
FLX
.062" Wire x .72" OD x 1.312" long
|
| 25. |
8601
|
[1] |
WASHER
|
FLX
9/32" id x 1 1/4" x 1/16"
|
| 27. |
8433
|
[1] |
SWITCH
|
FLX
micro, remote Superseded by part number: 787189
|
| 28. |
231-14406
|
[2] |
LOCK NUT,#6-32, GB
|
CAS
|
| 29. |
80280471
|
[2] |
LOCK WASHER
|
GI
Ext, #6
|
| 30. |
8635
|
[1] |
GROMMET
|
FLX
5/8" od x 1/4" id x 3/16" pt
|
| 31. |
87508158
|
[1] |
HARNESS
|
SAS
Work Switch, Tow Behind 3.05 m
|
| 31. |
51200014
|
[1] |
HARNESS
|
SAS
work switch tow between 12.8 m
|
| 32. |
9635082
|
[2] |
NUT,5/16" - 18, Gr 5
|
NH
|
| 33. |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 35. |
51200028
|
[2] |
TERMINAL CONNECTOR,22 - 16 SAE
|
FLX
ring 22-16awg #10 red
|
| 36. |
222136A1
|
[1] |
ELEC CONNECTOR,Male, 2 Pin
|
CAS
plastic 2c receptacle Superseded by part number: 87696547
|
| 37. |
223950A1
|
[2] |
ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm
|
CAS
18-20awg copper nickel plated Superseded by part number: 87696141
|
| 38. |
222848A1
|
[1] |
ELEC CONNECTOR
|
CAS
lock 2c receptacle Superseded by part number: 87696585
|
| 42. |
GH-235
|
[1] |
BRACKET
|
FLX
mount, spring
|
| 43. |
8434
|
[1] |
SPECIAL RING
|
FLX
29/32"
|
