神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (08-009) - FAN ASSY, AUTOMOBILE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
334 次

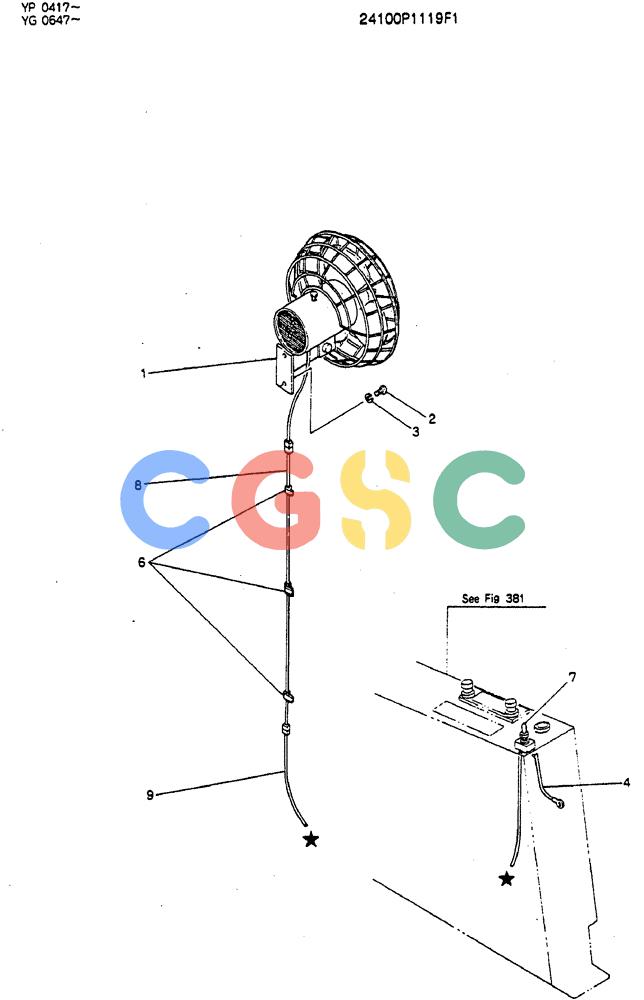

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1119F1 | [1] | FAN, AUTOMOBILE | FAN, AUTOMOBILE |
| 1. | 2474U101F2 | [1] | FAN | KOB Superseded by part number: 2474U101F2M |
| 2. | ZS31C06016 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 16mm | KOBM06x1.0x16mm |
| 3. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 4. | 2479Z845 | [1] | HARNESS | HARNESS |
| 6. | 2432Z309D2 | [6] | CLAMP | KOB |
| 7. | 2479Z849 | [1] | SWITCH | KOB Superseded by part number: 2479Z514 |
| 8. | 2479Z992 | [1] | HARNESS | |
| 9. | 2479Z976D2 | [1] | HARNESS | HARNESS |
