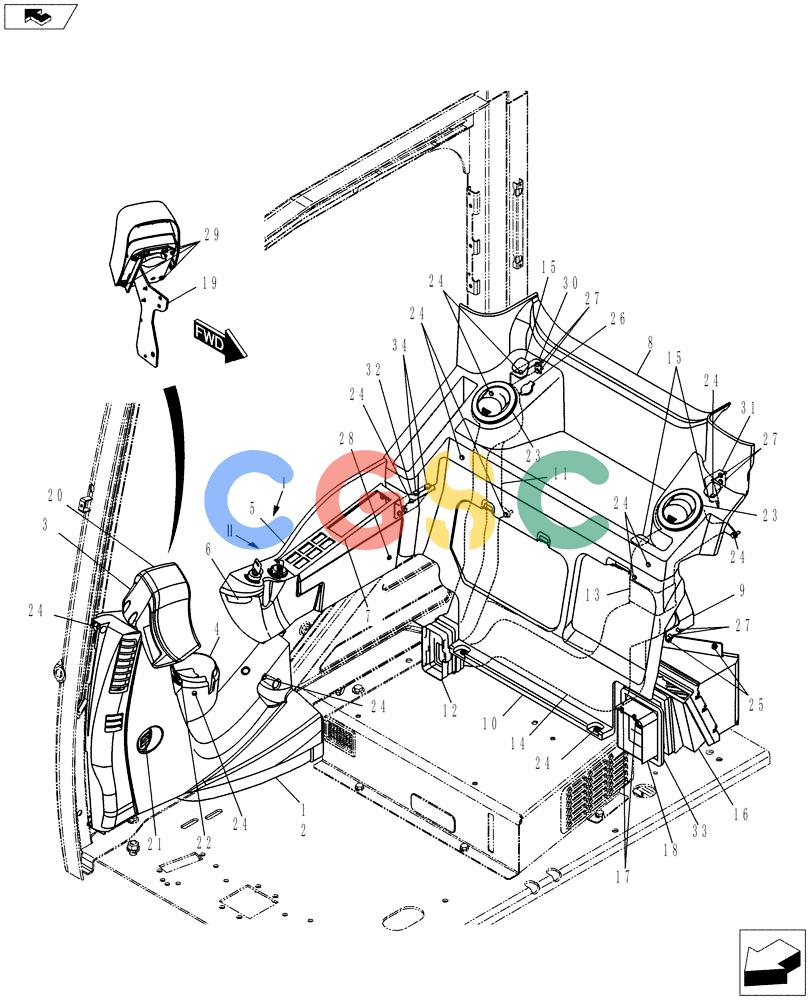

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-074[01]) - PANEL ASSEMBLY, INSTRUMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT17M00076F1 | [1] | Instrum | |
| 1. | YT17M00073F1 | [1] | DASHBOARD | KOBPanel Assy., Instrum |
| 2. | YY17M01034F1 | [1] | COVER ASSY | KOB Superseded by part number: YY17M01034F2 |
| 3. | YN17M01464P1 | [1] | COVER | SM Superseded by part number: YN17M01464P2 |
| 4. | YN17M01435F1 | [1] | SUPPORT | SMHolder Assy. Superseded by part number: YN17M01435F2 |
| 5. | YN17M01438F1 | [1] | COVER ASSY | SMAssy. Superseded by part number: YN17M01438F2 |
| 6. | YN17M01437P1 | [1] | PLUG | SMCap |
| 7. | YN17M01436F1 | [1] | COVER ASSY | SMAssy. Superseded by part number: YN17M01436F2 |
| 8. | YY17M01036F1 | [1] | COVER ASSY | KOBAssy. |
| 9. | YY17M01037P1 | [1] | BRACKET | KOB |
| 10. | YY17M01038F1 | [1] | COVER ASSY | KOB |
| 11. | YY20M01252F1 | [1] | AIR DUCT | KOBAssy. |
| 12. | YY20M01253F1 | [1] | AIR DUCT | KOBAssy. |
| 13. | YY20M01254P1 | [1] | AIR DUCT | KOB |
| 14. | YT20M01219F1 | [1] | AIR DUCT | KOBAssy. |
| 15. | YY20M01259P1 | [3] | CAP | KOB |
| 16. | YT20M01217F1 | [1] | AIR DUCT | KOBDuct Assy. Superseded by part number: YT20M01217F2 |
| 17. | ZS32T50012 | [2] | SCREW | KOBCross Tapping |
| 18. | YT20M01218P1 | [1] | AIR DUCT | KOB |
| 19. | YN17M01480P1 | [1] | BRACKET | SM |
| 20. | YN59S00021F3 | [1] | CONTROL MONITOR | SMGauge, Cluster |
| 21. | LQ58S00002P1 | [1] | HOURMETER | SM |
| 22. | PU20M01002P1 | [1] | CONVEYOR | SMGrille |
| 23. | YN20M01791P1 | [2] | CONVEYOR | SMGrille |
| 24. | ZM66C06020 | [16] | BOLT | KOBSems |
| 25. | ZM66C06016 | [5] | BOLT | KOBSems |
| 26. | YN81S01002P1 | [1] | SEAT/SLOT,12V | SMSocket |
| 27. | ZM73C06016 | [12] | BOLT,M6x16mm - Course Thread | KOBSems |
| 28. | YN17M01162D2 | [1] | SCREW | SMSems |
| 29. | ZM61C05012 | [4] | BOLT | KOBSems |
| 30. | YY17M01040P1 | [1] | BRACKET | KOB |
| 31. | YY17M01042P1 | [1] | BRACKET | KOB |
| 32. | YY17M01044P1 | [1] | BRACKET | KOB |
| 33. | YT20M01176P1 | [1] | RUBBER SEAL | KOB |
| 34. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBSems |
