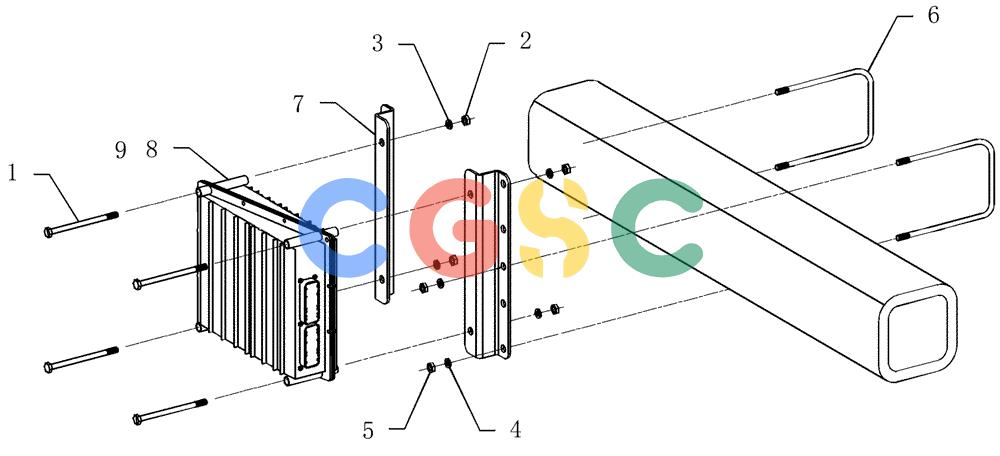

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (55.640.08) - FLOW REMOTE MODULE AND MOUNTING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
218 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
280492
|
[4] |
BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5
|
GI
|
| 2. |
7770
|
[4] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
| 3. |
80682
|
[4] |
LOCK WASHER,1/4"
|
PA
|
| 4. |
80681
|
[4] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 5. |
9635082
|
[4] |
NUT,5/16" - 18, Gr 5
|
NH
|
| 6. |
419990A1
|
[2] |
U-BOLT
|
FLX
us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread
|
| 7. |
87415392
|
[2] |
BRACKET
|
CON
FlexControl remote mount
|
| 8. |
87659831
|
[1] |
MODULE
|
SAS
167 optical fc, Start Year: 01-JUL-08
|
| 8. |
87659831R
|
[1] |
REMAN-MODULE
|
MKT
2280, 2330, 3380, 3430, Reman for New PN 87659831
|
| 8. |
87659831C
|
[1] |
CORE-MODULE
|
MKT
CORE-MODUL, Return Number
|
| 9. |
87504886
|
[1] |
MODULE
|
SAS
flow gateway remote optical sensor, Years: -01-JUL-08 Superseded by part number: 87659830
|
| 9. |
87504886C
|
[1] |
CORE-MODULE
|
MKT
CORE-MODUL Return Number, MODULE
|
| 9. |
87659830
|
[1] |
MODULE
|
SAS
flow gateway remote optical sensor, Start Year: 01-JUL-08
|
| 9. |
87659830R
|
[1] |
REMAN-MODULE
|
MKT
MODULE, Reman for New PN 87659830
|
| 9. |
87659830C
|
[1] |
CORE-MODULE
|
MKT
CORE-MODUL Return Number, MODULE
|
