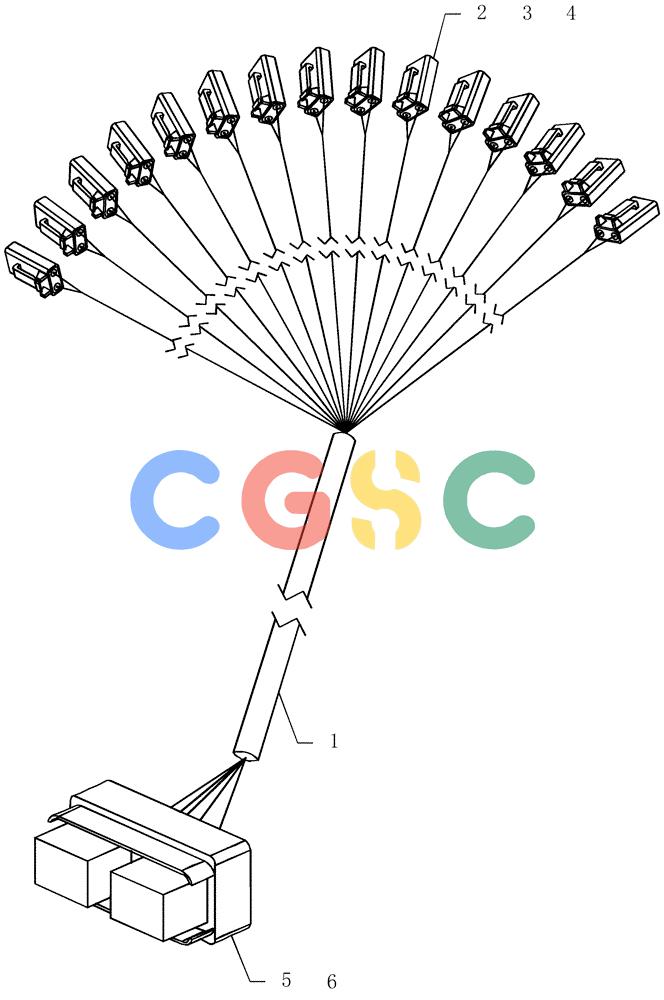

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (55.640.10) - FLOW REMOTE SENSOR HARNESS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14322V2
|
[1] |
HARNESS
|
SAS
flow sensor 15 input
|
| 2. |
222135A1
|
[15] |
CONNECTOR, ELEC
|
CAS
CONNECTOR plastic 2c plug Superseded by part number: 87696093
|
| 3. |
223952A1
|
[30] |
ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm
|
CAS
socket 18-20awg Superseded by part number: 87696954
|
| 4. |
222846A1
|
[15] |
STOP LOCK
|
CAS
2c plug connector Superseded by part number: 87696145
|
| 5. |
87268797
|
[1] |
MULTIPOLE CONNECTOR,Female, 30 Pole
|
BN
30c b plug
|
| 6. |
87270687
|
[30] |
ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2
|
BN
socket 16-20awg
|
