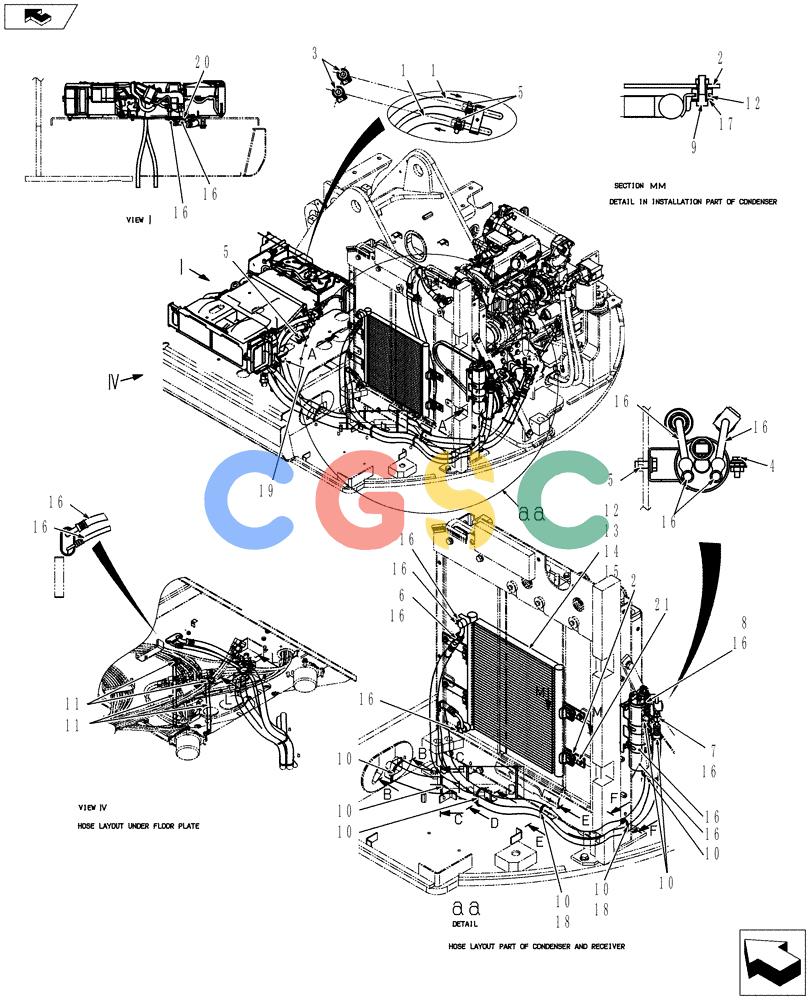

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-080[01]) - AIR CONDITIONING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
537 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT20M00023F1 | [1] | Air Rops Cab | |
| 1. | HX11W08210DX | [2] | FLEXIBLE HOSE | KOB |
| 2. | YT20M01214P1 | [2] | BRACKET | KOB |
| 3. | ZC16X02000 | [4] | CLIP | KOB |
| 4. | ZM73C06020 | [2] | BOLT,M6x20mm - Course Thread | KOBSems |
| 5. | ZM73C08020 | [7] | BOLT,M8x20mm - Course Thread | KOBSems |
| 6. | 2418Z1333D29 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1450mm Length | KOB |
| 7. | 2418Z1333D14 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1600mm Length | KOB |
| 8. | 2418Z1333D6 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1400mm Length | KOB |
| 9. | ZS18C08030 | [4] | SCREW,Hex, M8 x 30mm | KOBCap |
| 10. | PY01P01043D4 | [15] | CABLE TIE,4.80mm W x 251mm L | KOB |
| 11. | YT20M00021F1 | [1] | AIR CONDITIONER | KOBAssy. |
| 12. | YT20M01215F1 | [1] | CONDENSER | KOB |
| 13. | YT20M01215S001 | [1] | CONDENSER | KOB |
| 14. | YT20M01215S002 | [4] | RUBBER SLEEVE | KOB |
| 15. | YT20M01215S003 | [4] | COLLAR CLAMP | KOB |
| 16. | YT96V00004F1 | [1] | EVAPORATOR | KOBDryer Assy., Air |
| 17. | PV01P01007P1 | [4] | WASHER | KOB |
| 18. | YN13E01375P1 | [3] | CLIP,M8 x 8.20mm Shank | KOB |
| 19. | YN20M01514P1 | [1] | GASKET | SMGrommet |
| 20. | YN20M01676P1 | [1] | GASKET | SMGrommet |
| 21. | ZM73C08016 | [4] | BOLT,M8x16mm - Course Thread | KOBSems |
