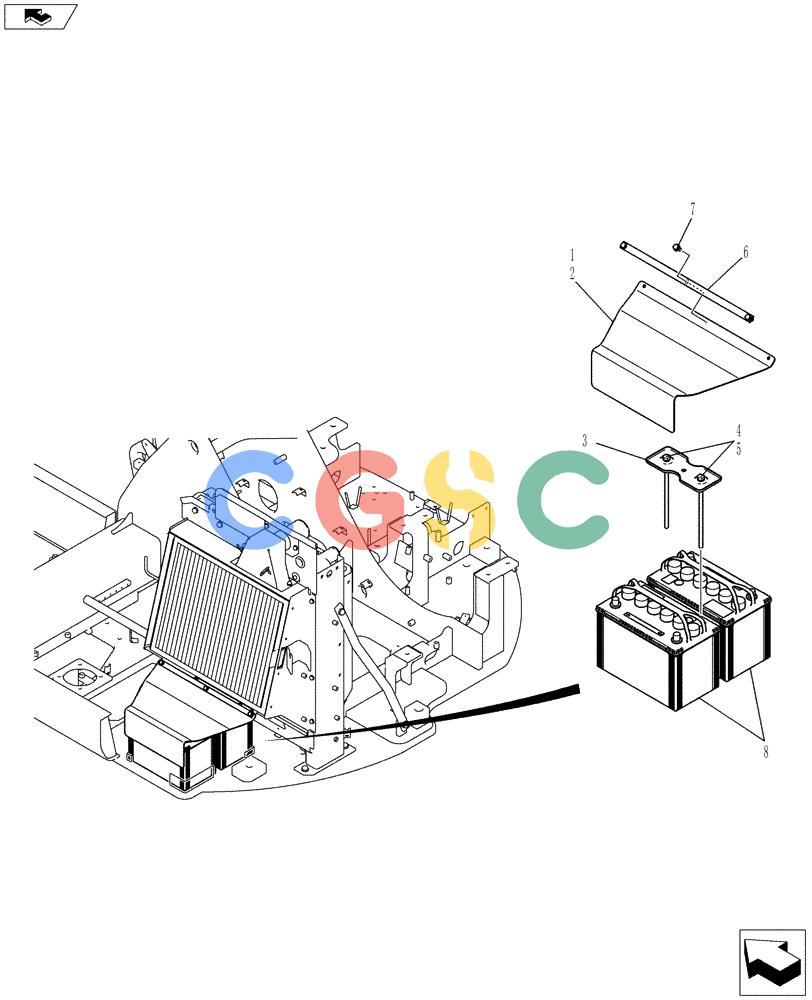

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-079[00]) - BATTERY ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
355 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT72E00003F1 | [1] | | |
| 1. | YT72E00004F1 | [1] | BATTERY | KOBInstal |
| 2. | YT72E01005P1 | [1] | COVER | KOB |
| 3. | 2418P5535 | [1] | PLATE | KOB |
| 4. | YT72E01003D1 | [2] | CAPSCREW | KOBSCREW Cap |
| 5. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| 6. | YT72E01006P1 | [1] | PLATE | KOB |
| 7. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBSems |
| 8. | PW72S00004P1 | [2] | WET BATTERY | KOB |
| 8. | F565DSW | [2] | WET BATTERY,12V, 700CCA | MKTNew Holland |
| 8. | B27F72W | [2] | WET BATTERY | IHCase USA |
| 8. | CC27F72W | [2] | WET BATTERY | MKTCase Canada |
