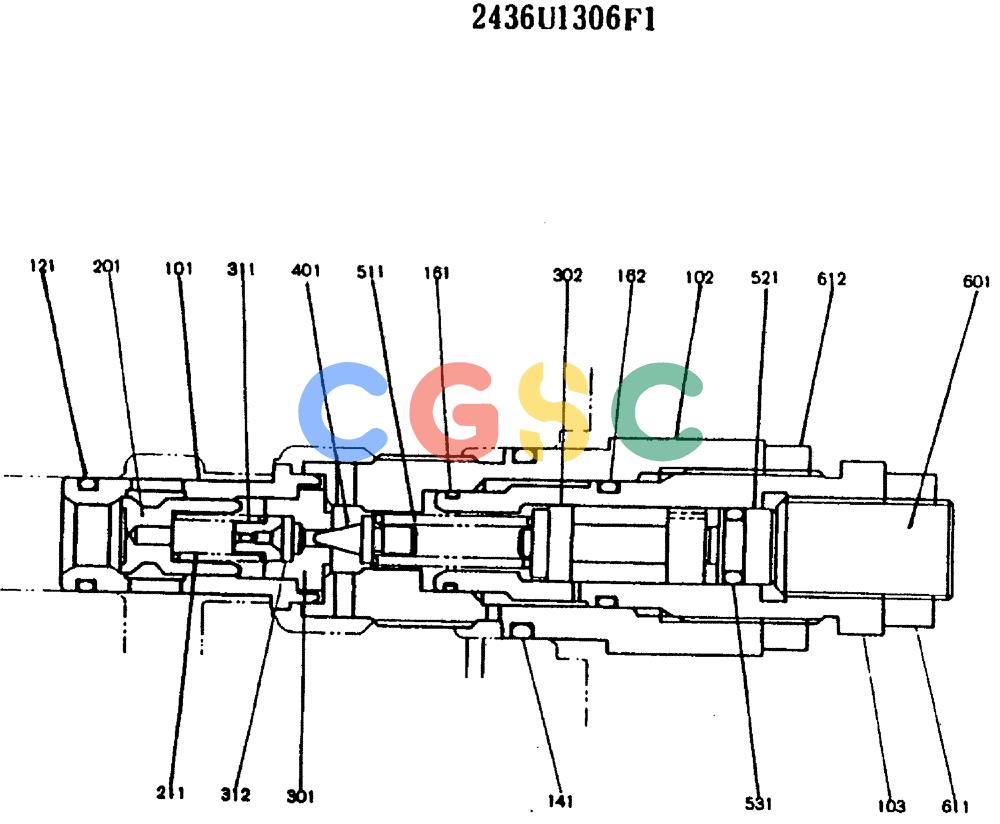

神钢零件查询(MD200BLC) - EXCAVATOR ASN YQ0565 (1/80-12/06) (11-115) - VALVE ASSY, MAIN RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
956 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1306F1 | [1] | VALVE PRESSURE RELIE | KOBVALVE, RELIEF CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2436R838F1 |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 102. | 2436U1306S102 | [1] | PLUG | |
| 103. | 2436U1281S103 | [1] | PLUG | |
| 121. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 141. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 161. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 162. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 211. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 302. | 2436U1281S302 | [1] | PISTON | KOBPISTON |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| 401. | 2436R682S401 | [1] | POPPET | KOB |
| 511. | 2436U1281S511 | [1] | SPRING | KOB |
| 521. | 2436U1306S521 | [1] | SPRING SEAT | KOBSEAT |
| 531. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 601. | 2436U1306S601 | [1] | SCREW, ADJUST | |
| 611. | 2436U1306S611 | [1] | NUT, LOCK | |
| 612. | 2436U1281S612 | [1] | LOCK NUT | KOBNUT, LOCK |
| . . | 2436U1306R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF 101 & 201 |
| . . | 2436U1306R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF 301, 311 & 312 Superseded by part number: 2436R752R200 |
