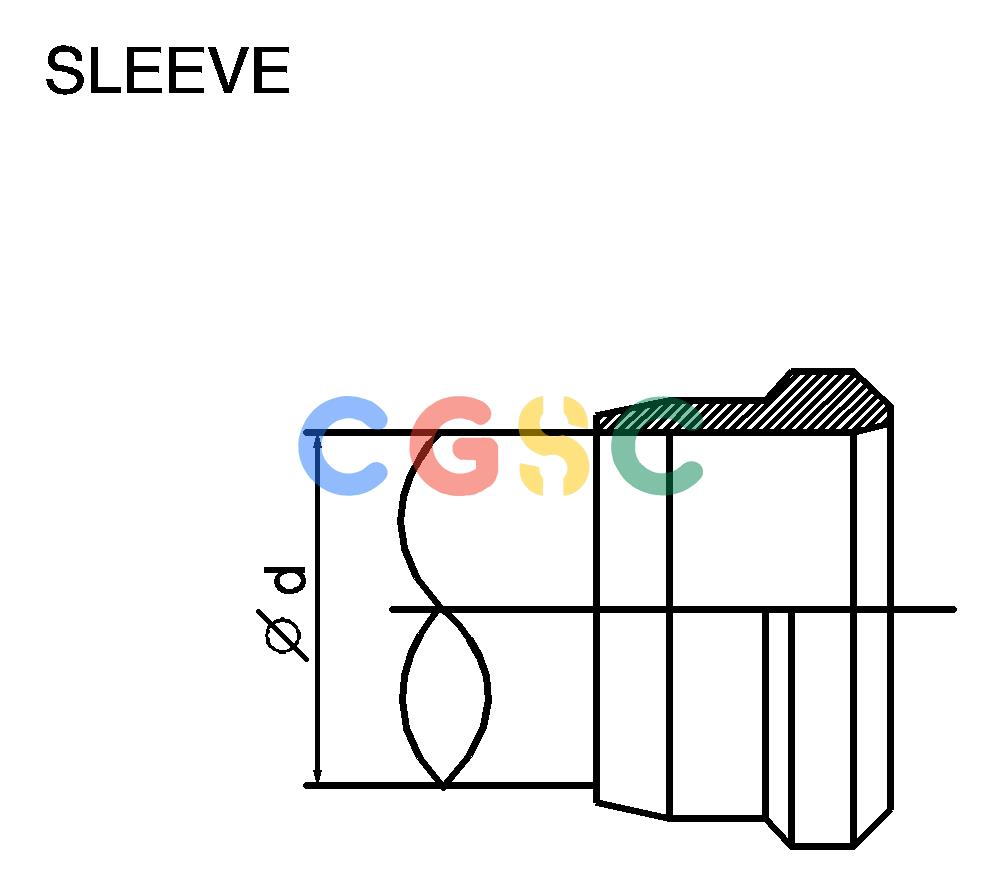

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (005-01[1]) - SLEEVE PARTS NUMBER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
924 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ZA93S10000 | [1] | TUBE NUT | KOBSleeve Type: AMC, Tube Size Ød:10 |
| . . | ZA93S15000 | [1] | FERRULE | KOBSleeve Type: AMC, Tube Size Ød:15 |
| . . | ZA93S18000 | [1] | FERRULE | KOBSleeve Type: AMC, Tube Size Ød:18 |
| . . | ZA93S22000 | [1] | RING | KOBSleeve Type: AMC, Tube Size Ød:22 |
| . . | ZA93S28000 | [1] | FERRULE | KOBSleeve Type: AMC, Tube Size Ød:28 |
| . . | ZA93S35000 | [1] | FERRULE | KOBSleeve Type: AMC, Tube Size Ød:35 |
| . . | ZF93S06000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:6 |
| . . | ZF93S08000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:8 |
| . . | ZF93S10000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:10 Superseded by part number: ZF96S10000, ZF96N10000 |
| . . | ZF93S12000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:12 Superseded by part number: ZF96N12000, ZF96S12000 |
| . . | ZF93S15000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:15 |
| . . | ZF93S18000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:18 |
| . . | ZF93S22000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:22 |
| . . | ZF93S28000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:28 Superseded by part number: ZA93S28000 |
| . . | ZF93S32000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:32 |
| . . | ZF93S35000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:35 |
| . . | ZF93S38000 | [1] | FERRULE | KOBSleeve Type: IHARA, Tube Size Ød:38 |
