纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (005-01[2]) - NUT PARTS NUMBER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
627 次

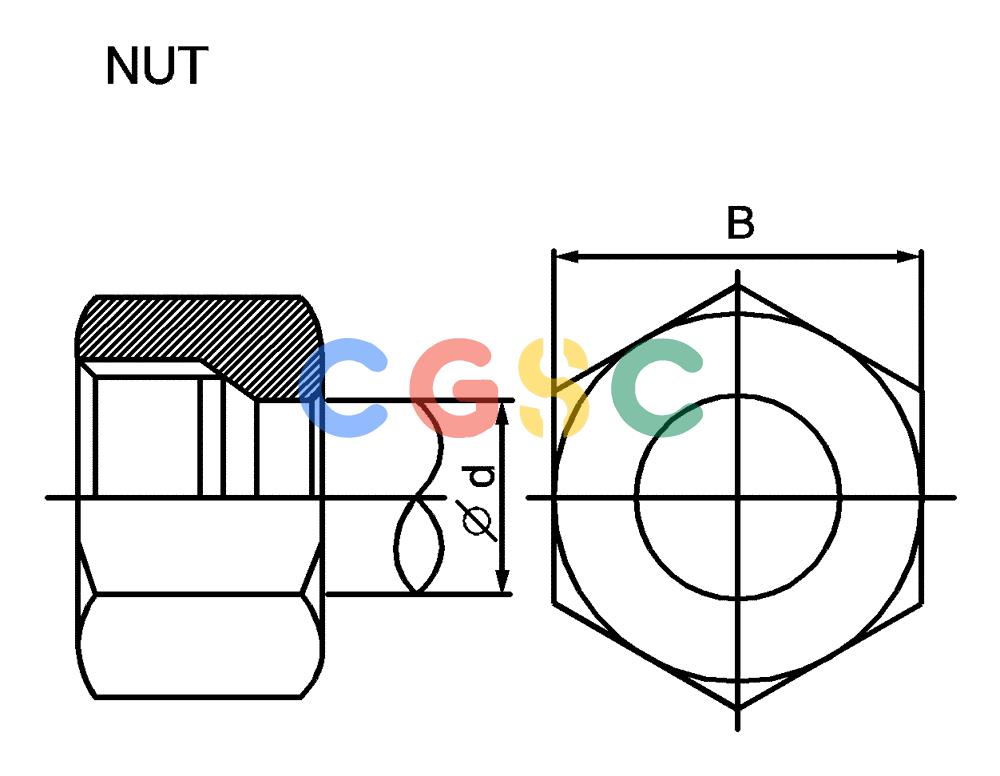

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ZA93N10000 | [19] | NUT | KOBNut Type:AMC, Nut Size Ød:10 |
| . . | ZA93N15000 | [27] | TUBE NUT | KOBNut Type:AMC, Nut Size Ød:15 |
| . . | ZA93N18000 | [32] | NUT | KOBNut Type:AMC, Nut Size Ød:18 |
| . . | ZA93N22000 | [36] | TUBE NUT | KOBNut Type:AMC, Nut Size Ød:22 |
| . . | ZA93N28000 | [41] | TUBE NUT | KOBNut Type:AMC, Nut Size Ød:28 |
| . . | ZA93N35000 | [55] | TUBE NUT | KOBNut Type:AMC, Nut Size Ød:35 |
| . . | ZF93N06000 | [14] | NUT | KOBNut Type:IHARA, Nut Size Ød:6 |
| . . | ZF93N08000 | [17] | NUT | KOBNut Type:IHARA, Nut Size Ød:8 |
| . . | ZF93N10000 | [19] | NUT | KOBNut Type:IHARA, Nut Size Ød:10 |
| . . | ZF93N12000 | [22] | NUT | KOBNut Type:IHARA, Nut Size Ød:12 |
| . . | ZF93N15000 | [27] | NUT | KOBNut Type:IHARA, Nut Size Ød:15 |
| . . | ZF93N18000 | [32] | NUT | KOBNut Type:IHARA, Nut Size Ød:18 |
| . . | ZF93N22000 | [36] | NUT | KOBNut Type:IHARA, Nut Size Ød:22 |
| . . | ZF93N28000 | [41] | TUBE NUT | KOBNut Type:IHARA, Nut Size Ød:28 Superseded by part number: ZA93N28000 |
| . . | ZF93N32000 | [50] | NUT | KOBNut Type:IHARA, Nut Size Ød:32 |
| . . | ZF93N35000 | [55] | NUT | KOBNut Type:IHARA, Nut Size Ød:35 |
| . . | ZF93N38000 | [60] | NUT | KOBNut Type:IHARA, Nut Size Ød:38 |
