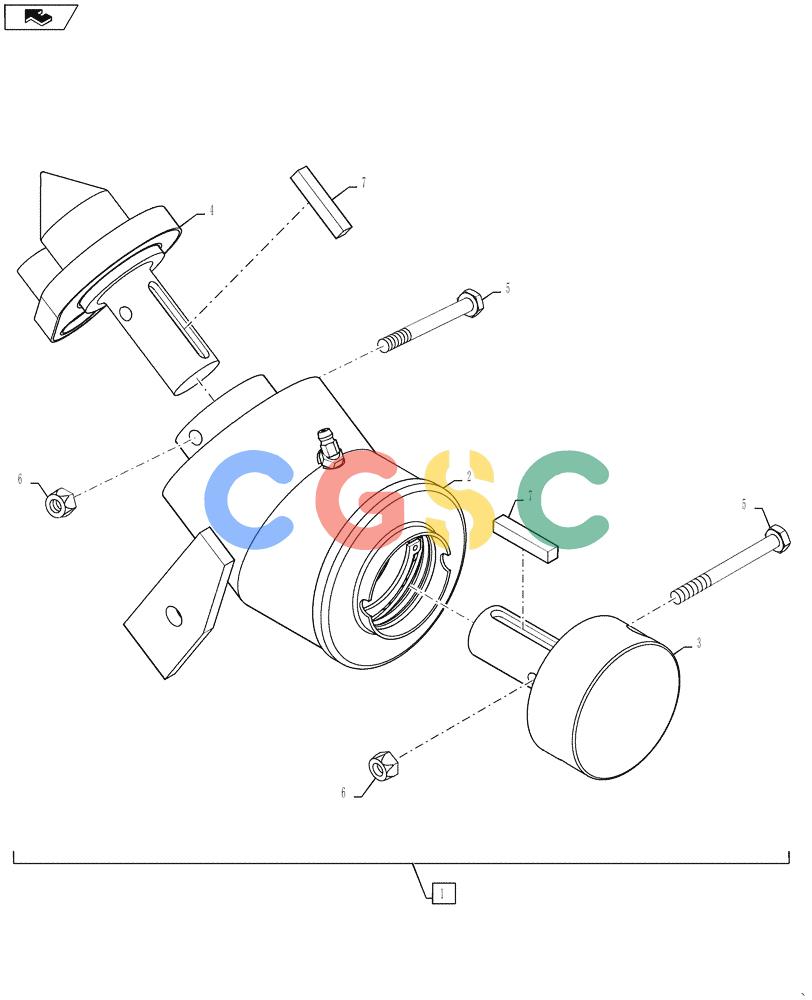

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (80.150.BK[02]) - DELUXE AUGER GEARBOX AUGER HOPPER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47393596
|
[1] |
Gear Box Auger Hopper Incl 2 - 7
|
|
| 2. |
84497405
|
[1] |
GEARBOX
|
SAS
Auger Drive 147 Shaft
|
| 3. |
84527686
|
[1] |
GUIDE
|
SAS
Auger Coupler
|
| 4. |
84424480
|
[1] |
DRIVE
|
SAS
Auger Coupler
|
| 5. |
281069
|
[2] |
BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 8
|
GI
|
| 6. |
20356
|
[2] |
NUT,1/4"-20, GB
|
PA
Superseded by part number: 280129
|
| 7. |
84424488
|
[2] |
KEY
|
SAS
Gearbox Coupler
|
