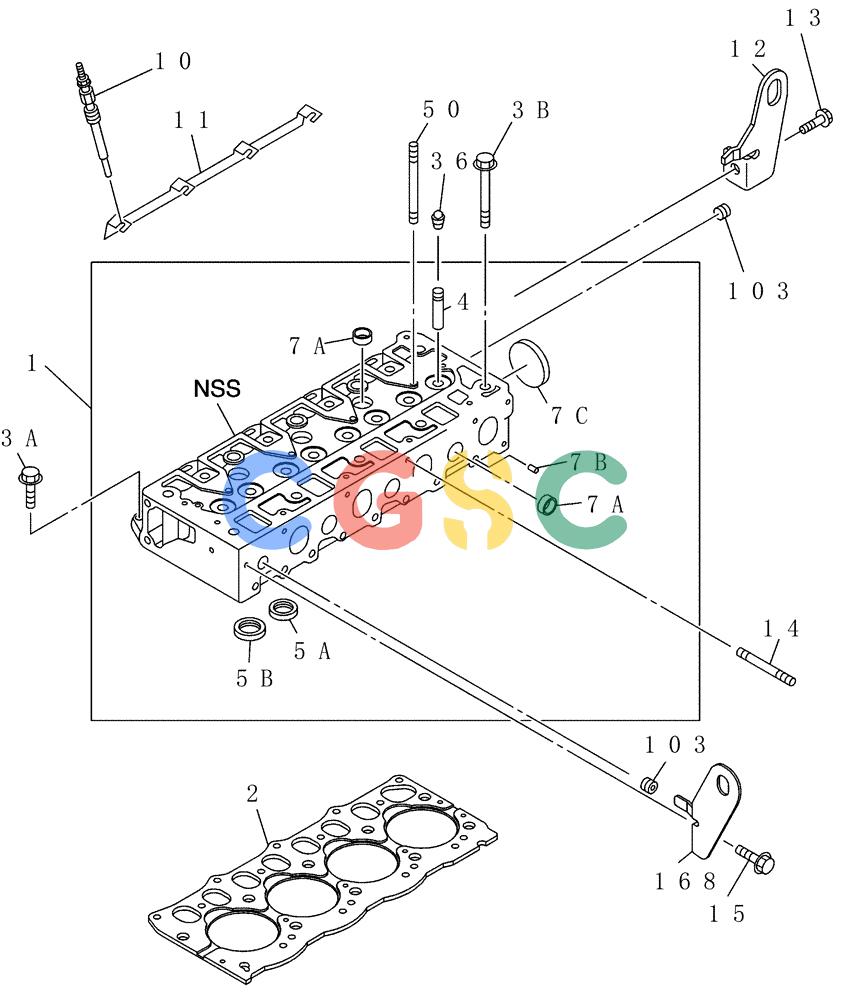

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-11A) - CYCLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
743 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8980305520 | [1] | CYLINDER HEAD | KOBAsm |
| . . | VI8980489450 | [1] | CYLINDER HEAD GASKET | KOB |
| A. | VI8944637840 | [5] | BOLT | KOBCyl Hd To Block |
| B. | VI8970369591 | [10] | BOLT | KOBCyl Hd To Block |
| . . | VI8970317490 | [8] | VALVE GUIDE | KOB Superseded by part number: VI8972319690 |
| A. | VI8970453912 | [4] | VALVE SEAT | KOBInsert |
| B. | VI8970453920 | [4] | VALVE SEAT | KOBInsert |
| A. | VI8972096090 | [6] | SEAL | KOBCup Cyl Head |
| B. | VI8972334290 | [5] | SEAL | KOBCup Cyl Head |
| C. | VI8973514510 | [1] | CUP | KOBSealing, Cyl Head Superseded by part number: VI8970365501 |
| . . | VI8970476041 | [4] | GLOW PLUG | KOB |
| . . | VI8972293810 | [1] | HYD CONNECTOR | KOBGlow Plug |
| . . | VI8970853890 | [1] | HANGER | KOBHanger; Eng, Rr |
| . . | VI0280508160 | [1] | BOLT | KOBHanger |
| . . | VI8941558690 | [8] | STUD | KOBExh Manif |
| . . | VI8941105591 | [8] | OIL SEAL | KOBOil, Vlv Guide |
| . . | VI8970946411 | [6] | STUD | KOBRocker Shaft Brkt |
| . . | VI5096050050 | [2] | PLUG | KOBHd |
