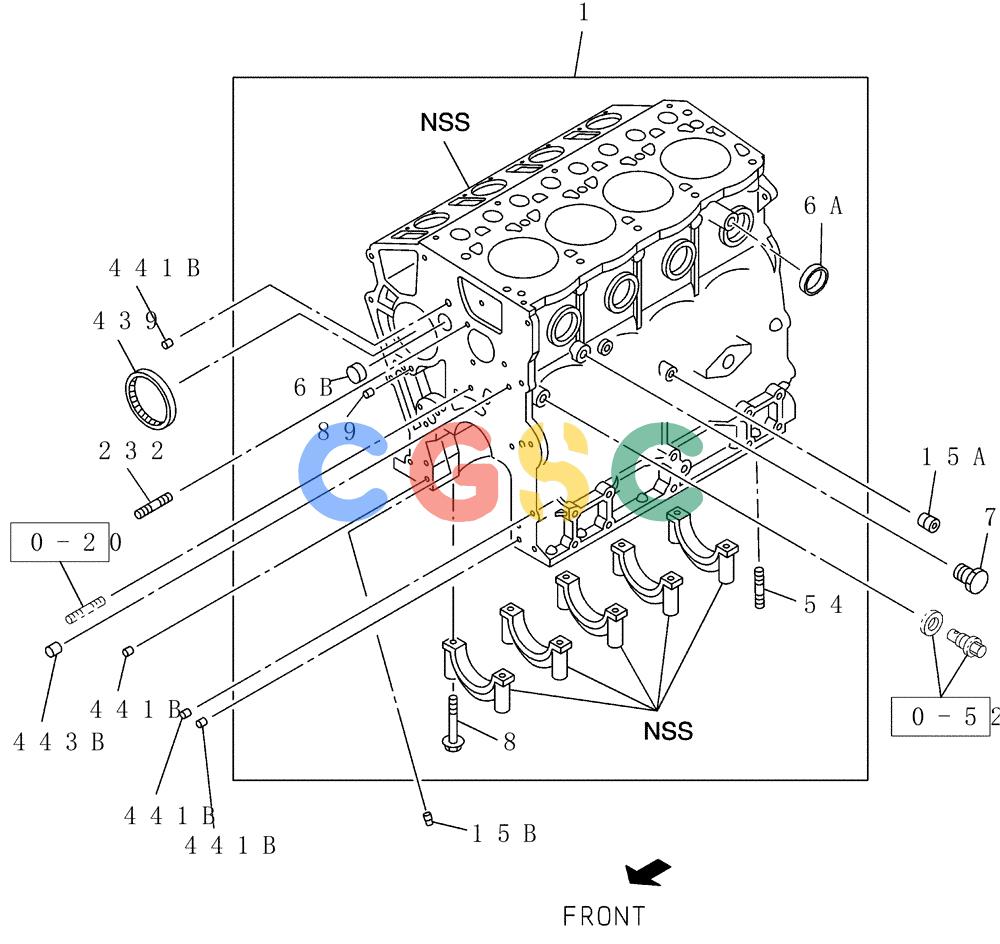

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-12A[1]) - CYCLINDER BLOCK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8980894850 | [1] | CYLINDER BLOCK | KOBBlock Asm; Cyl Superseded by part number: VI8980894851 |
| . . | VI8942298530 | [5] | CUP | KOBSealing |
| . . | VI8972096090 | [1] | SEAL | KOBCup |
| . . | VI9096640010 | [1] | PLUG | KOBWater Drain |
| . . | VI8941674701 | [10] | BOLT | KOBBrg Cap |
| A. | VI1096050190 | [1] | PLUG | KOBOil Gallery |
| B. | VI9092045100 | [1] | PLUG | KOBOil Gallery |
| . . | VI0410106200 | [4] | STUD | KOBOil Pan To Block |
| . . | VI9081506160 | [6] | PIN | KOBStraight |
| . . | VI9081508160 | [2] | PIN | KOBFlywheel Hsg |
| . . | VI5096000130 | [6] | CUP | KOBSealing, Oil Gallery Superseded by part number: VI8970363351 |
| . . | VI0280506120 | [4] | BOLT | KOBCover |
| . . | VI8973296220 | [2] | NUT | KOBCover Fix |
| . . | VI8980637570 | [8] | STUD | KOBPump Hole |
| . . | VI8972621461 | [1] | STUD | KOBWater Pump |
| . . | VI8971189892 | [1] | COVER | KOBCyl Block |
| . . | VI8972621471 | [3] | STUD | KOBCover M6x16 L=25 |
| . . | VI8972621481 | [1] | STUD | KOBCover M6x19 L=27 |
| . . | VI8980637940 | [1] | NEEDLE BEARING | KOB |
| . . | VI8970394953 | [2] | PIN | KOBCont Link |
| A. | VI8942008190 | [2] | DOWEL | KOBCyl Block |
| B. | VI9112290581 | [4] | DOWEL | KOBCyl Block |
| . . | VI8970471421 | [1] | PLUG | KOBThrust |
| A. | VI1096000122 | [1] | CAP | KOBSealing |
