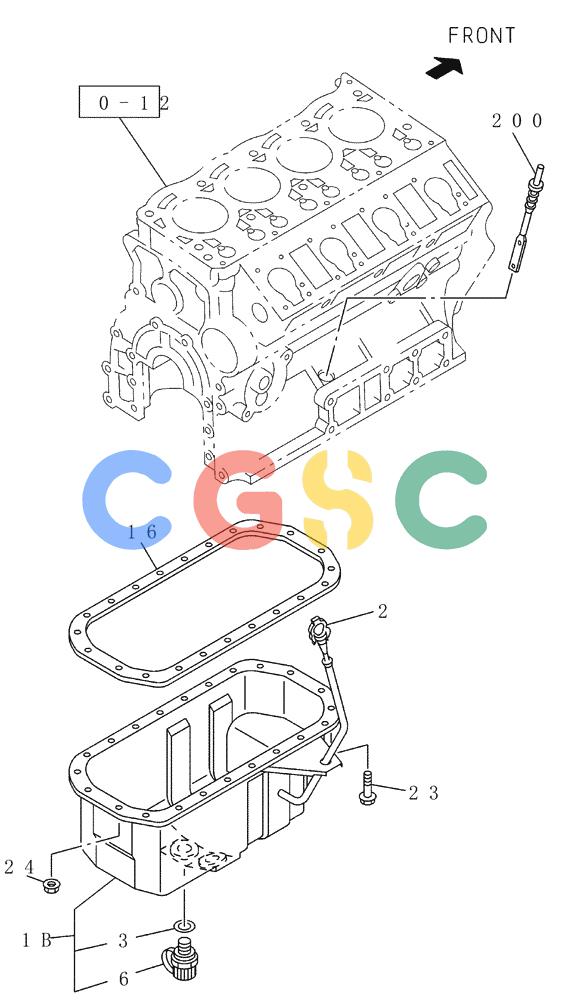

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-13A) - OIL PAN AND LEVEL GAUGE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| B. | VI8980930730 | [1] | PAN | KOBAsm Oil |
| . . | VI8980490350 | [1] | LEVEL GAUGE | KOBOil Superseded by part number: VI8980490351 |
| . . | VI1096300900 | [1] | PACKING | KOBGasket; Drain Plug |
| . . | VI1096801060 | [1] | PLUG | KOBOil Drain Superseded by part number: KPM-PM2420-LB |
| . . | VI8973149140 | [1] | GASKET | KOBOil Pan To C/bl |
| . . | VI8980797910 | [18] | BOLT | KOBOil Pan |
| . . | VI8973296220 | [4] | NUT | KOBOil Pan |
| . . | VI8944584720 | [1] | PLUG | KOBLevel Gauge Superseded by part number: 47543914 |
