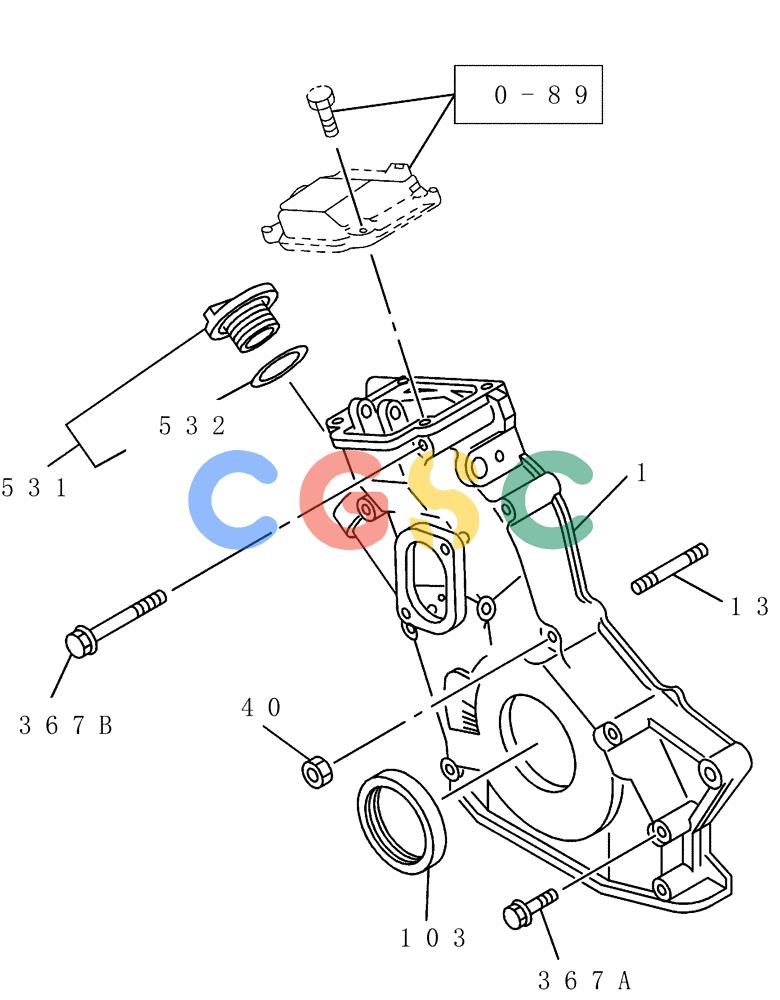

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-20A[1]) - TIMING GEAR CASE AND FLYWHEEL HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
292 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8973034111 | [1] | CASE | KOBTiming Gear Superseded by part number: VI8973034112 |
| . . | VI8980903220 | [1] | HOUSING | KOBFlywheel Superseded by part number: VI8980903222 |
| . . | VI0911802080 | [2] | NUT | KOBGear Case |
| . . | VI8973517040 | [1] | OIL SEAL | KOBCr/shf, Frt |
| . . | VI0410108600 | [1] | STUD | KOBTiming Gear Case M8x60 L=72 M8x60 L=72 |
| . . | VI8972621461 | [1] | STUD | KOBTiming Gear Case M8x50 L=62 M8x50 L=62 |
| . . | VI8972310302 | [1] | RETAINER | KOBCr/shf |
| . . | VI5096250940 | [1] | OIL SEAL | KOBCr/shf, Rr |
| . . | VI0280506200 | [8] | BOLT | KOBRet To C/bl |
| . . | VI0281510250 | [6] | BOLT | KOBHsg Superseded by part number: 419915A1 |
| A. | VI0280508600 | [6] | BOLT | KOBGear Case |
| B. | VI0280508800 | [2] | BOLT | KOBGear Case Superseded by part number: 87597729 |
| . . | VI8972207400 | [1] | COVER | KOBHole |
| . . | VI8944256852 | [1] | CAP | KOBOilfilter |
| . . | VI8941236231 | [1] | GASKET | KOBCap |
