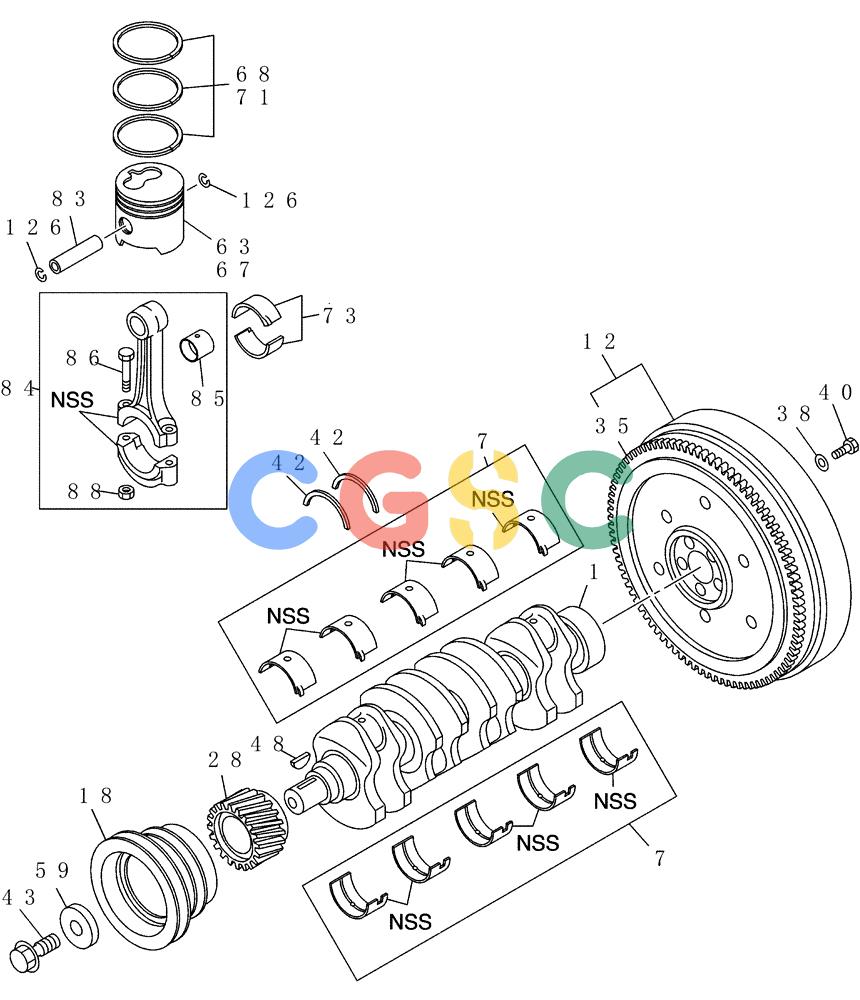

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-15A) - CRANKSHAFT, PISTON AND FLYWHEEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
132 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8980638280 | [1] | CRANKSHAFT | KOB |
| . . | VI8980890840 | [1] | REPAIR KIT | KOBMetal Crankshaft, Standard |
| . . | VI8980306272 | [1] | ENGINE FLYWHEEL | KOB |
| . . | VI8980891100 | [1] | CRANKSHAFT PULLEY | KOB |
| . . | VI8973286120 | [1] | GEAR | KOBCr/shf |
| . . | VI8980930180 | [1] | RING GEAR | KOB |
| . . | VI8970232680 | [6] | WASHER | KOBFlywheel |
| . . | VI8941333281 | [6] | BOLT | KOBFlywheel |
| . . | VI8980637830 | [2] | WASHER | KOBThrust, Cr/shf |
| . . | VI8943860790 | [1] | BOLT | KOBCr/shf Pulley |
| . . | VI8942016410 | [1] | KEY | KOBWoodruff, Cr/shf |
| . . | VI8941347920 | [1] | WASHER | KOBCr/shf Pulley |
| . . | VI8980681581 | [4] | PISTON | KOB |
| . . | VI8980681571 | [4] | PISTON ASSY | KOBPiston; O/s=0. 25 |
| . . | VI8980952150 | [4] | SET OF RINGS | KOBPiston, Standard |
| . . | VI8980952160 | [4] | SET OF PISTON RINGS +0.6 | KOBRing Set; Piston, O/s=0. 25 Superseded by part number: 47543932 |
| . . | VI8980957130 | [4] | SET OF CONN ROD BRGS (STD) | KOBMetal Standard |
| . . | VI5122110170 | [4] | PISTON PIN | KOB |
| . . | VI8980757760 | [4] | CONNECTING ROD | KOBAsm; Conn Superseded by part number: VI8980757761 |
| . . | VI8980638260 | [4] | BUSHING | KOBConnrod |
| . . | VI8980485360 | [8] | BOLT | KOBConnrod |
| . . | VI8943777850 | [8] | NUT | KOBConnrod |
| . . | VI8943699050 | [8] | SNAP RING | KOBPiston Pin |
