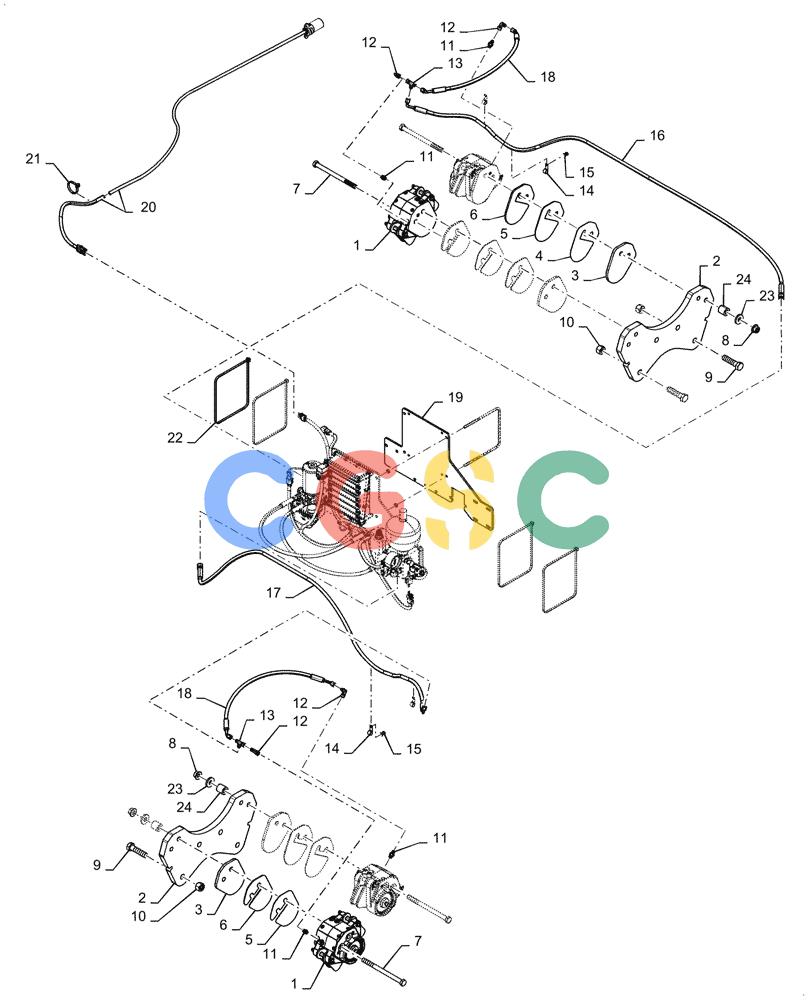

| 1. |
47695029
|
[4] |
CALIPER
|
SAS
Brake
|
| 2. |
47733382
|
[2] |
PLATE
|
SAS
Caliper Mounting
|
| 3. |
47591939
|
[4] |
SHIM
|
SAS
Brake Caliper
|
| 4. |
47591932
|
[2] |
SHIM
|
SAS
Brake Caliper
|
| 5. |
47591934
|
[4] |
SHIM
|
SAS
Brake Caliper
|
| 6. |
47591936
|
[4] |
SHIM
|
SAS
Brake Caliper
|
| 7. |
47867743
|
[8] |
BOLT
|
SAS
M16 x 220 12.9 Dor
|
| 8. |
86512498
|
[8] |
FLANGE NUT,M16 x 2, Cl 10
|
PA
|
| 9. |
382101
|
[8] |
BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8
|
NH
|
| 10. |
725637
|
[8] |
NUT,M20 x 2.5, Cl 8
|
BER
Superseded by part number: 380424
|
| 11. |
265235
|
[4] |
HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC
|
WIN
|
| 12. |
86512933
|
[4] |
90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw
|
BAS
|
| 13. |
86513653
|
[2] |
TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC
|
WIN
|
| 14. |
47756267
|
[4] |
CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, J Type
|
SAS
|
| 15. |
47756303
|
[4] |
RIVET
|
SAS
Pop 1/4 x 0.875 Gr1
|
| 16. |
47770497
|
[1] |
HYDRAULIC HOSE
|
SAS
from Caliper to Brake System (6.3 x 2050mm)
|
| 17. |
47773797
|
[1] |
HYDRAULIC HOSE
|
SAS
from Caliper to Brake System (6.3 x 1650mm)
|
| 18. |
47706605
|
[2] |
HYDRAULIC HOSE
|
SAS
from Tee to Caliper (6.3 x 700mm)
|
| 19. |
47765992
|
[1] |
MOUNT
|
SAS
Braking System
|
| 20. |
47922304
|
[1] |
WIRE HARNESS
|
SAS
Brakes, Air Cart
|
| 21. |
87502038
|
[24] |
CABLE TIE
|
BN
Small
|
| 22. |
87557086
|
[4] |
CABLE TIE
|
SAS
Large
|
| 23. |
122432
|
[8] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Superseded by part number: 84058945
|
| 24. |
47851705
|
[8] |
SPACER
|
SAS
31.75 x 17.48 x 32 Plated
|
| 25. |
47732726
|
[1] |
WIRE HARNESS
|
SAS
Brake, Seed Toll Extension (Not Shown)
|
| 26. |
47732724
|
[1] |
WIRE HARNESS
|
SAS
Brakes, Tractor (Not Shown) Superseded by part number: 47950268
|
| 27. |
47754708
|
[1] |
CONTROLLER
|
SAS
In Cab Trailer Brake (Not Shown)
|
| 28. |
47830690
|
[1] |
MOUNT
|
SAS
Brake Controller (Not Shown)
|
| 29. |
86511826
|
[2] |
SCREW,Phillips Drive, Pan HD, M5 x 16mm
|
FOR
(Not Shown)
|
| 30. |
2977215
|
[2] |
NUT,M5 x 0.8, Cl 8
|
BER
(Not Shown) Superseded by part number: 80043440
|
| 31. |
7770
|
[4] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
(Not Shown)
|
| 32. |
87526197
|
[2] |
U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L
|
BRR
(Not Shown)
|
