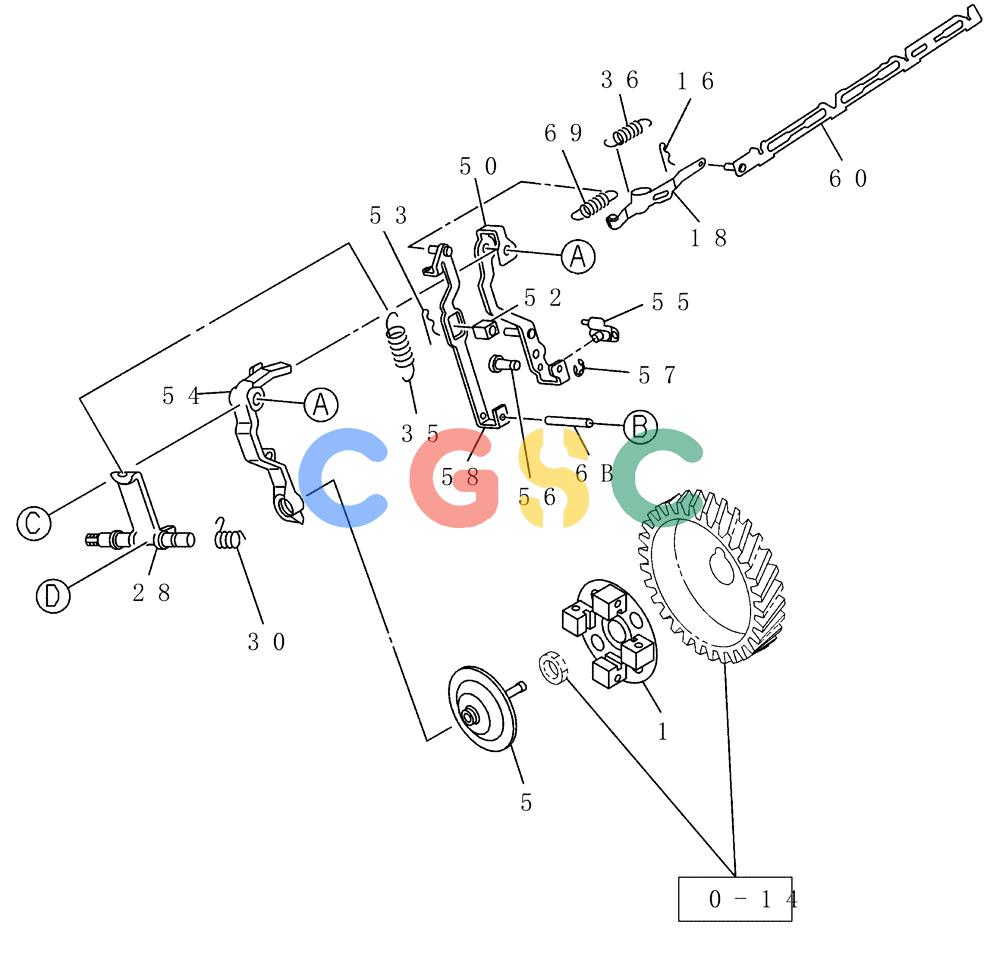

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-89A[2]) - TIMING CHAIN CASE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
728 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI9081504360 | [1] | PIN | KOBSpr, Cont |
| . . | VI8970837141 | [1] | SPRING | KOBSet |
| . . | VI8973074671 | [1] | COVER | KOBAngleich |
| . . | VI5111290060 | [1] | SEAL | KOBCup Sealing |
| . . | VI8972268421 | [1] | GASKET | KOBCover, Angleich |
| . . | VI8970395461 | [1] | SPRING | KOBFuel Cut |
| . . | VI0911105080 | [1] | NUT | KOBShaft |
| . . | VI8972628170 | [1] | BUSHING | KOBLever, Main Spr |
| . . | VI8944546150 | [1] | SEAL | KOBCup Sealing, Bushing |
| A. | VI9095651140 | [1] | GASKET | KOBBush |
| B. | VI9095651160 | [1] | GASKET | KOBBush |
