神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (02-007) - COVER ASSY, UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
364 次

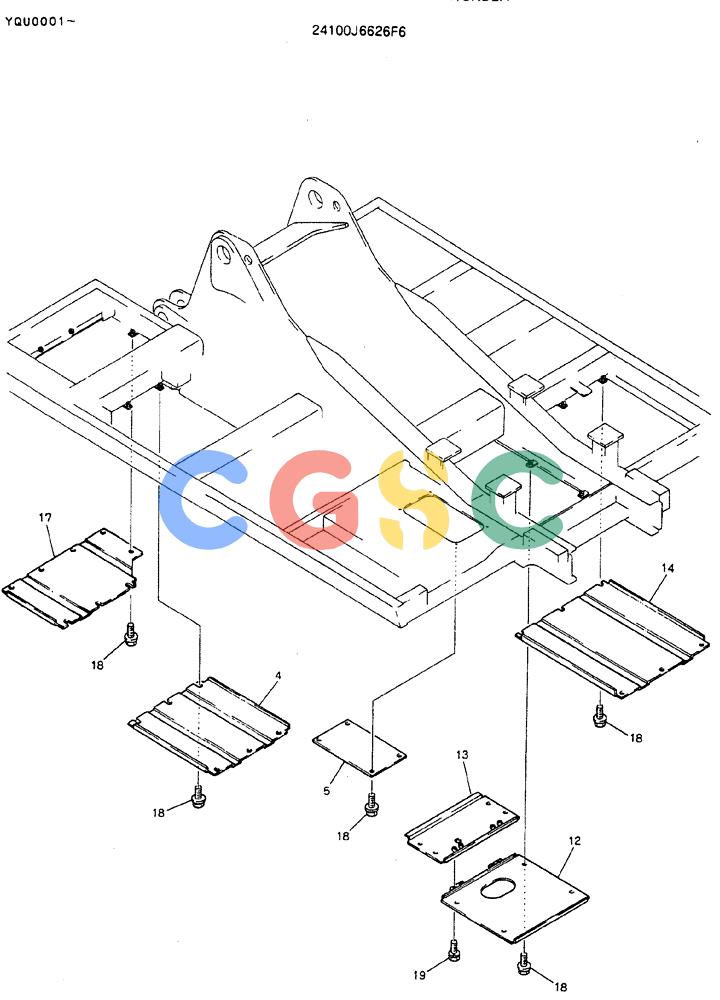

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6626F6 | [1] | COVER, UNDER ASSY | |
| 4. | 2414P6036 | [1] | COVER | KOB |
| 5. | 2414T2891 | [1] | COVER | KOB |
| 12. | 2414P6053 | [1] | COVER | COVER |
| 13. | 2414P6052 | [1] | COVER | KOB |
| 14. | 2414P4045 | [1] | COVER | KOB |
| 17. | 2414P6750 | [1] | COVER | KOB |
| 18. | 2420T6787 | [33] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 19. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
