神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (11-001) - VALVE ASSY, RELIEF - 2436R680F1, F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
672 次

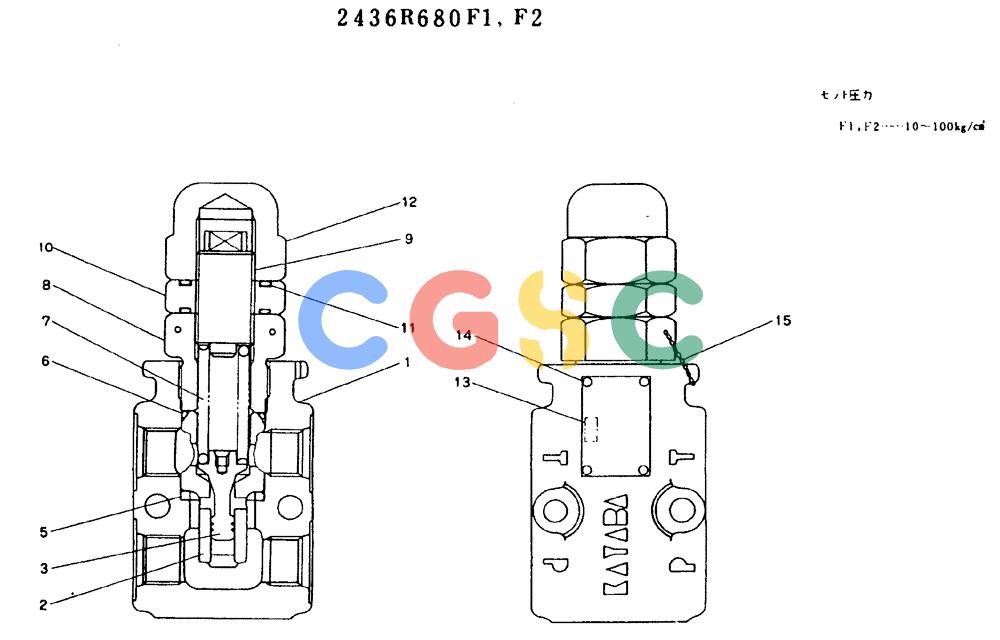

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R680F1 | [1] | VALVE PRESSURE RELIE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R680F2 | [1] | VALVE PRESSURE RELIE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | 2436R680S2 | [1] | HOUSING | |
| 3. | 2436R1117S3 | [1] | VALVE PRESSURE RELIE | KOB |
| 5. | B36P0048E5 | [1] | SEAT | KOB |
| 6. | B36P0048E6 | [1] | O-RING | KOB |
| 7. | B36P0048E7 | [1] | SPRING | KOB |
| 8. | B36P0048E8 | [1] | SET OF SCREWS | KOB |
| 9. | B36P0048E9 | [1] | SCREW | KOBADJUST |
| 10. | B36P0048E10 | [1] | NUT | |
| 11. | ZD11G02500 | [2] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOB |
| 12. | B36P0048E12 | [1] | CAP | KOB |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 14. | NSS | [4] | NOT SOLD SEPARAT | CONSCREW, DRIVE |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONLOCK, WIRE |
| . . | 2436R680R100 | [1] | SEAL PACKAGE | KOBREPAIR |
