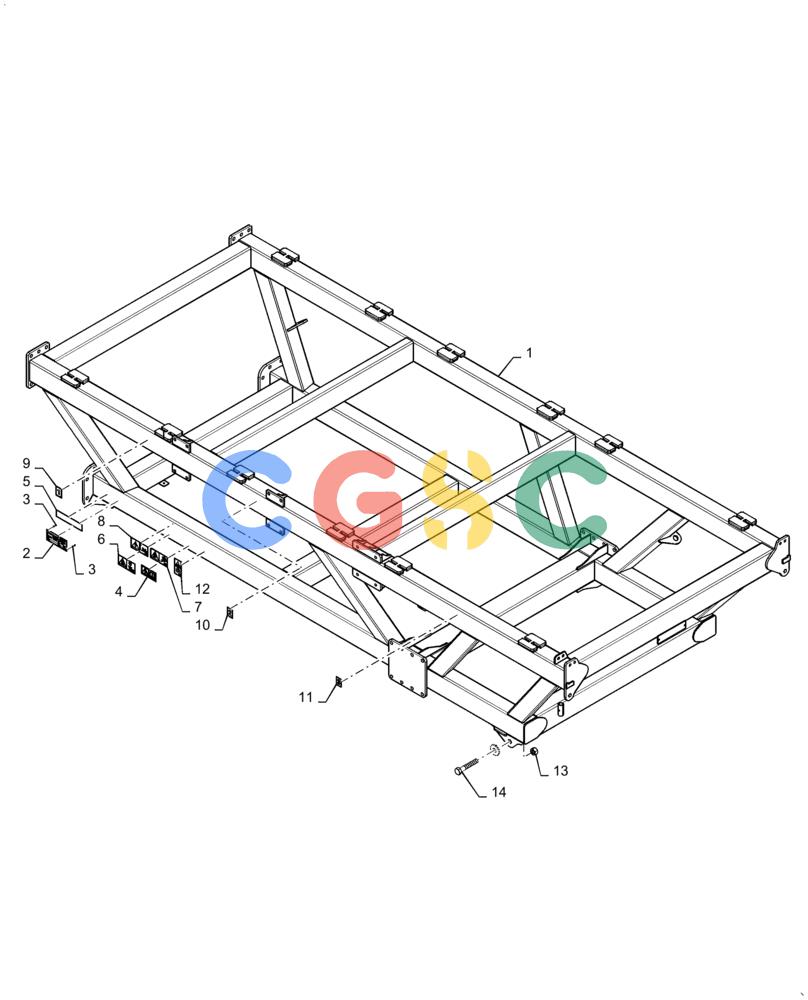

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (39.100.AB[02]) - FRAME 435/460 BUSHEL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
435 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47508953
|
[1] |
FRAME
|
SAS
460 Bushel Red
|
| 1. |
47508951
|
[1] |
FRAME
|
SAS
460 Bushel Blue
|
| 1. |
47508955
|
[1] |
FRAME
|
SAS
460 Bushel Black
|
| 2. |
NS
|
[1] |
NOT SERVICED
|
BAS
ID Plate Special Order
|
| 3. |
86637654
|
[4] |
RIVET,Pop, 1/8" x .575"
|
FAR
ID Plate
|
| 4. |
47358801
|
[1] |
CAUTION DECAL
|
SAS
ISO
|
| 5. |
311864A1
|
[3] |
REFLECTOR
|
CAS
Amber 2 X 9 "
|
| 6. |
47403730
|
[1] |
WARNING DECAL
|
SAS
Loss of Control
|
| 7. |
47405862
|
[1] |
WARNING DECAL
|
SAS
Rollover Hazard
|
| 8. |
47405863
|
[1] |
WARNING DECAL
|
SAS
Electrocution Hazard
|
| 9. |
47681092
|
[1] |
DECAL
|
SAS
Tank 1
|
| 10. |
47681093
|
[1] |
DECAL
|
SAS
Tank 2
|
| 11. |
47681094
|
[1] |
DECAL
|
SAS
Tank 3
|
| 12. |
47405861
|
[1] |
WARNING DECAL
|
SAS
Hearing Protection
|
| 13. |
1836642
|
[2] |
BOLT,Hex, M30 x 170, 10.9
|
BER
|
| 14. |
87752066
|
[2] |
NUT
|
BRR
|
