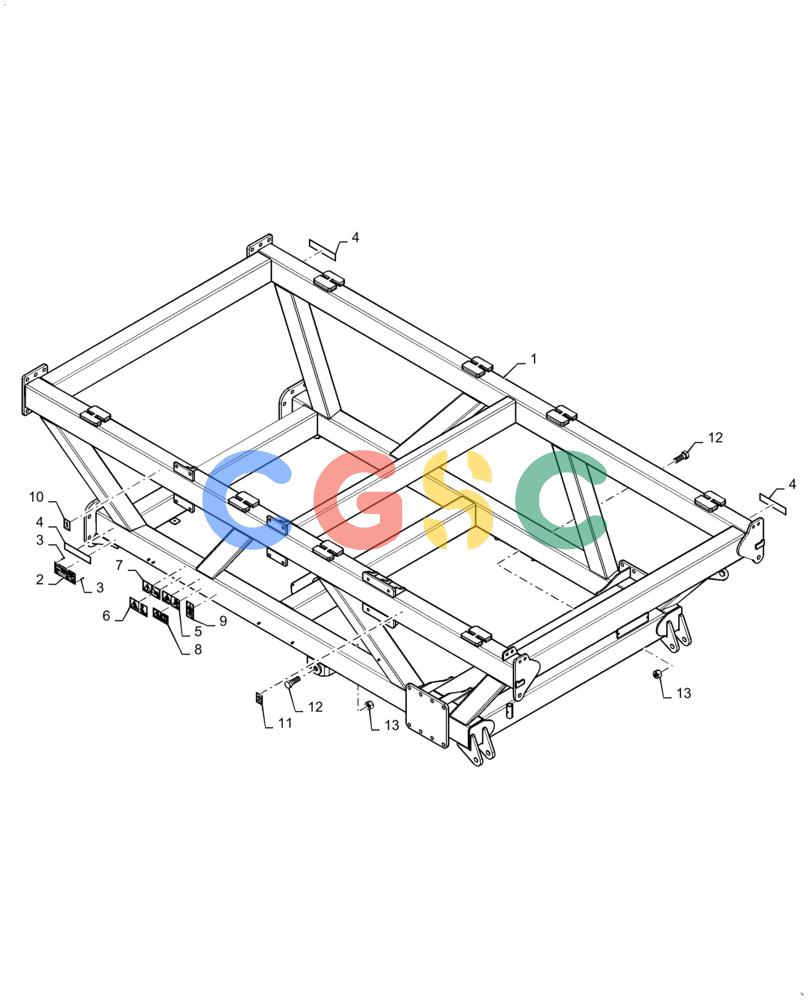

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (39.100.AB[01]) - FRAME 350 BUSHEL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
919 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47508950
|
[1] |
FRAME
|
SAS
350 Bushel Red
|
| 1. |
47508951
|
[1] |
FRAME
|
SAS
350 Bushel Blue
|
| 1. |
47508952
|
[1] |
FRAME
|
SAS
350 Bushel Black
|
| 2. |
NS
|
[1] |
NOT SERVICED
|
BAS
ID Plate Special Order Only
|
| 3. |
86637654
|
[4] |
RIVET,Pop, 1/8" x .575"
|
FAR
ID Plate
|
| 4. |
311864A1
|
[3] |
REFLECTOR
|
CAS
Amber 2 X 9"
|
| 5. |
47405862
|
[1] |
WARNING DECAL
|
SAS
Rollover Hazard
|
| 6. |
47403730
|
[1] |
WARNING DECAL
|
SAS
Loss of Control
|
| 7. |
47405863
|
[1] |
WARNING DECAL
|
SAS
Electocution Hazard
|
| 8. |
47358801
|
[1] |
CAUTION DECAL
|
SAS
Caution
|
| 9. |
47405861
|
[1] |
WARNING DECAL
|
SAS
Hearing Protection
|
| 10. |
47681092
|
[1] |
DECAL
|
SAS
Tank 1
|
| 11. |
47681093
|
[1] |
DECAL
|
SAS
Tank 2
|
| 12. |
47754385
|
[2] |
BOLT,Hex, M30 x 80mm, Cl 8.8
|
SAS
M30 X 80 8.8
|
| 13. |
925476
|
[2] |
LOCK NUT,M30 x 3.5, Cl 8
|
BER
|
