纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (HC405[1]) - PUMP ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
412 次

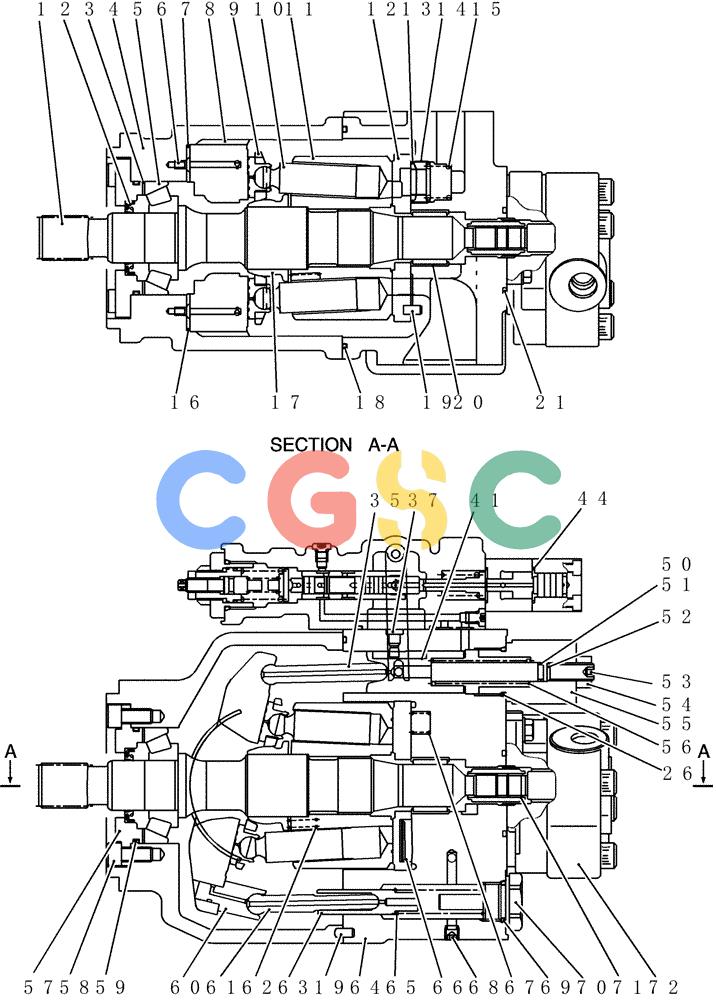

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT10V00016F1 | [1] | HYDRAULIC PUMP | KOBAssy Superseded by part number: YT10V00023F1 |
| 1. | YT10V00016S001 | [1] | SHAFT | KOB |
| 2. | YT10V00016S002 | [1] | OIL SEAL | KOB |
| 3. | EZ10V00001S012 | [1] | SHIM | KOB |
| 4. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing |
| 5. | 2437U283S23 | [1] | BEARING | KOBRoller |
| 6. | YT10V00016S006 | [2] | Screw | |
| 7. | YT10V00016S007 | [1] | Cradle | |
| 9. | YT10V00016S009 | [1] | PLATE | KOBReturn |
| 12. | YT10V00016S012 | [1] | PLATE | KOBPort |
| 13. | YT10V00016S013 | [1] | RING | KOB |
| 14. | YT10V00016S014 | [1] | BUSHING | KOB |
| 15. | YT10V00016S015 | [1] | SPRING | KOB |
| 16. | YT10V00016S016 | [1] | Cradle | |
| 17. | YT10V00016S017 | [1] | RETAINER | KOB |
| 18. | LQ15V00015S012 | [1] | O-RING | KOB |
| 19. | 2441U754S17 | [6] | PIN | KOB |
| 20. | YT10V00016S020 | [1] | NEEDLE | KOB |
| 21. | ZD12G05500 | [1] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO-ring |
| 22. | YT10V00016S022 | [1] | Nut | |
| 23. | YT10V00016S023 | [1] | Nut | |
| 24. | YT10V00016S024 | [4] | O-RING | KOB |
| 25. | YT10V00016S025 | [1] | CAP | KOB |
| 26. | ZD12P02900 | [2] | O-RING | KOB |
| 27. | YT10V00016S027 | [1] | SLEEVE | KOB |
| 28. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 29. | YT10V00016S029 | [1] | Stopper | |
| 30. | YT10V00016S030 | [1] | SPRING | KOB |
| 31. | YT10V00016S031 | [1] | SPRING | KOB |
| 32. | YT10V00016S032 | [1] | GUIDE | KOBSpring |
| 33. | YT10V00016S033 | [6] | CAP | KOB |
| 34. | YT10V00016S034 | [6] | O-RING | KOB |
| 35. | YT10V00016S035 | [1] | ROD | KOB |
| 36. | YT10V00016S036 | [1] | SLEEVE | KOB |
| 37. | YT10V00016S037 | [1] | PIN | KOB |
| 38. | YT10V00016S038 | [1] | Case | |
| 39. | YT10V00016S039 | [1] | ROD | KOB |
| 40. | YT10V00016S040 | [1] | PISTON | KOB |
| 41. | YT10V00016S041 | [1] | PISTON | KOB |
| 42. | YT10V00016S042 | [1] | PISTON | KOB |
| 43. | YT10V00016S043 | [1] | SPRING | KOB |
| 44. | YT10V00016S044 | [1] | O-RING | KOB |
| 45. | YT10V00016S045 | [1] | Cover | |
| 46. | YT10V00016S046 | [1] | PISTON | KOB |
| 47. | YT10V00016S047 | [1] | Cover | |
| 48. | YT10V00016S048 | [1] | PISTON | KOB |
| 49. | ZS23C06070 | [4] | SCREW,Hex Socket Head, M6 x 70mm | KOBCap |
| 50. | ZD12P01000 | [1] | O-RING | KOB |
| 51. | ZD85P01000 | [1] | RING, SNAP | KOBSNAP RING Back Up |
| 52. | YT10V00016S052 | [1] | Stopper | |
| 53. | YT10V00016S053 | [1] | Screw | |
| 54. | YT10V00016S054 | [1] | Nut | |
| 55. | YT10V00016S055 | [1] | CAP | KOB |
| 56. | YT10V00016S056 | [1] | SPRING | KOB |
| 57. | YT10V00016S057 | [1] | RETAINER | KOB |
| 58. | ZS23C10020 | [6] | SCREW,Hex Socket Head, M10 x 20mm | KOBCap |
| 59. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB |
| 60. | YT10V00016S060 | [1] | Guide | |
| 61. | YT10V00016S061 | [1] | ROD | KOB |
| 62. | YT10V00016S062 | [6] | SPRING | KOB |
| 63. | YT10V00016S063 | [1] | PISTON | KOB |
| 65. | YT10V00016S065 | [1] | SPRING | KOB |
| 66. | YT10V00016S066 | [2] | BUSHING | KOB |
| 67. | YT10V00016S067 | [2] | SPRING | KOB |
| 68. | YT30V00039S089 | [2] | PLUG | KOB |
| 69. | ZD12P02240 | [1] | O-RING | KOB |
| 70. | YT10V00016S070 | [1] | CAP | KOB |
| 71. | YT10V00016S071 | [1] | COUPLING | KOB |
| 72. | YT10V00022F1 | [1] | PUMP | KOBAssy, Gear (See HC420) |
| 73. | PR15V00003S043 | [1] | CAPSCREW | KOBSCREW Cap |
| 74. | YT10V00016S074 | [1] | SNAP RING | KOB |
| 75. | YT10V00016S075 | [1] | PLUG | KOB |
| 76. | YT10V00016S076 | [3] | O-RING | KOB |
| 77. | YT10V00016S077 | [1] | LINK | KOB |
| 78. | YT10V00016S078 | [1] | PIN | KOB |
| 79. | YT10V00016S079 | [1] | O-RING | KOB Superseded by part number: YT10V00023R100 |
| 80. | ZS23C16090 | [3] | SCREW,Hex Socket Head, M16 x 90mm | KOBCap |
| 81. | YT10V00016S081 | [2] | BOLT | KOB |
| 82. | YT10V00016S082 | [2] | WASHER | KOB |
| 83. | YT10V00016S083 | [1] | CAPTIVE WASHER SCREW | KOBCap |
| 84. | 2436U1309S41 | [2] | CAP | KOB |
| . . | YT10V00016R100 | [1] | REPAIR KIT | KOBConsists Of Item 1x2, 2x1, 3x1 Superseded by part number: YT10V00023F1 |
| . . | YT10V00016R200 | [1] | REPAIR KIT | KOBConsists Of Item 19x6, 22x1, 23x1 Superseded by part number: YT10V00023R100 |
| . . | YT10V00016R300 | [1] | REPAIR KIT | KOBConsists Of Item 10x9, 11x1 |
| . . | YT10V00016R400 | [1] | REPAIR KIT | KOBConsists Of Item 8x1, 60x1 |
| . . | YT10V00016R500 | [1] | Repair Kit Consists Of Item 26x2, 50x1, 51x1 | |
