纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (HC600[1]) - CYLINDER ASSY, BOOM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
578 次

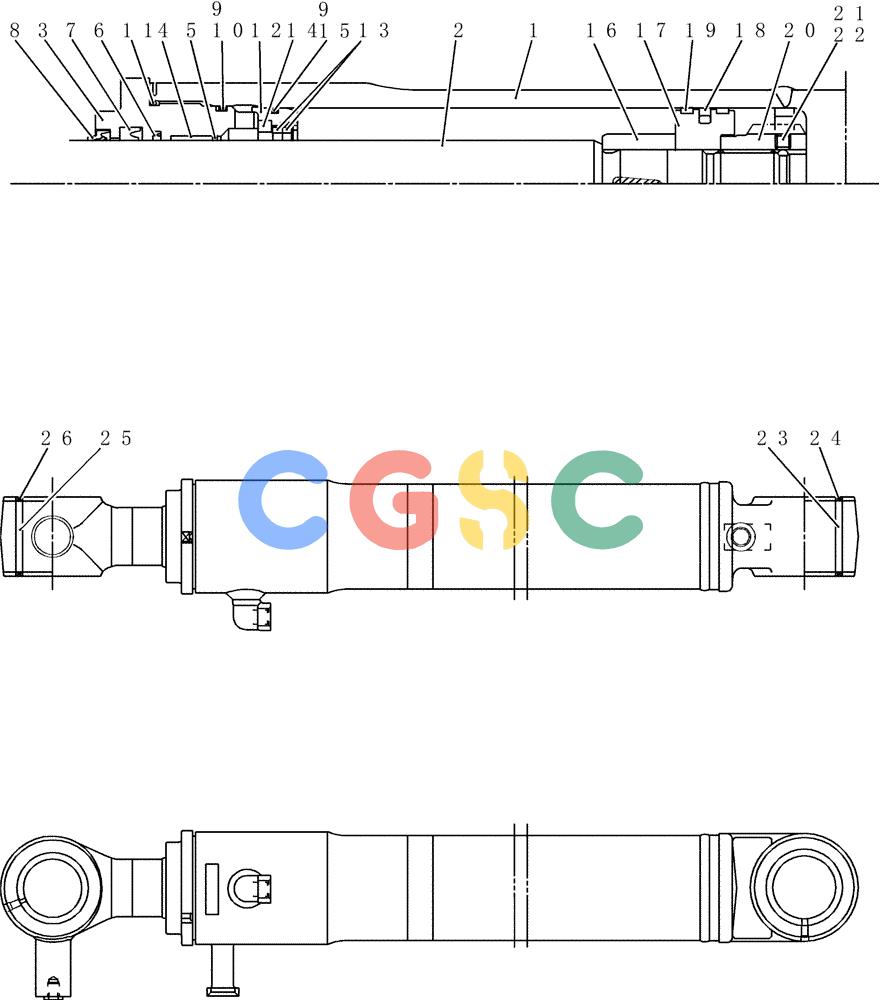

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT01V00030F1 | [1] | LIFT CYLINDER | KOBAssy, Boom |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTube, Cylinder |
| 3. | YT01V00017S003 | [1] | CYLINDER HEAD | KOB |
| 4. | YT01V00017S004 | [1] | BUSHING | KOB |
| 5. | 2438U721S7 | [1] | SNAP RING | KOBRetaining |
| 6. | YT01V00017S006 | [1] | RING | KOBBuffer |
| 7. | 2438U381S4 | [1] | RING | KOBU-ring Superseded by part number: 2438U721S16 |
| 8. | YT01V00001S009 | [1] | RING | KOBWiper |
| 9. | ZD12G10500 | [2] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB |
| 10. | PY01V00036S008 | [1] | RING | KOBBack Up |
| 11. | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB |
| 12. | YT01V00017S012 | [1] | HOLDER | KOB |
| 13. | YT01V00017S013 | [2] | SEAL | KOBCushion |
| 14. | YT01V00017S014 | [1] | COLLAR | KOB |
| 15. | 2438U1949S12 | [1] | RING | KOBBack Up |
| 16. | YT01V00017S016 | [1] | BEARING | KOBCushion |
| 17. | YT01V00017S017 | [1] | PISTON | KOB |
| 18. | 2438U716S23 | [1] | SEAL | KOBSEALRING Ring |
| 19. | YM01V00009S018 | [2] | RING | KOBSlide |
| 20. | YM01V00009S020 | [1] | NUT | KOB |
| 21. | 2438U999S21 | [1] | SET SCREW | KOBSet |
| 22. | 2436U330S16 | [1] | BALL | KOB |
| 23. | YT01V01001P2 | [2] | BUSHING | KOB |
| 24. | 2438U1946S25 | [2] | RING | KOBWiper |
| 25. | YT01V01003P2 | [2] | BUSHING | KOB |
| 26. | LP01V00007S026 | [2] | RING | KOBWiper |
| . . | YT01V00017R100 | [1] | SEAL | KOBRepair Kit Consists Of Item 6x1, 7x1, 8x1, 9x2 |
| . . | YT01V00017R600 | [1] | SEAL KIT | KOBRepairConsists Of Item 18x1, 19x2 |
| . . | YT01V00030R300 | [1] | REPAIR KIT | KOBConsists Of Item 6x1, 7x1, 8x1, 9x2 Superseded by part number: YT01V00017S013, YT01V00030R300M |
| . . | YT01V00030R400 | [1] | PIPE | KOBRepair Kit Consists Of Item 1x1, 23x2 |
