纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (HC770[1]) - CYLINDER ASSY, SWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
699 次

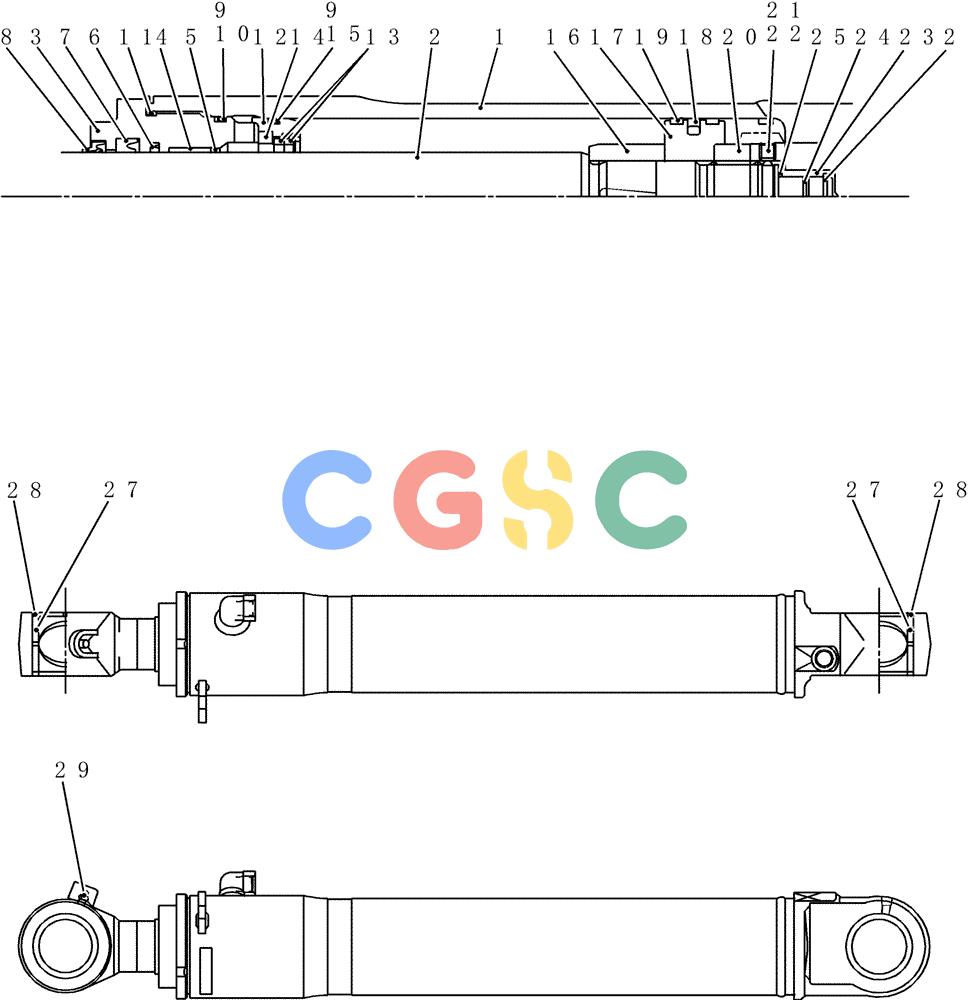

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF01V00007F1 | [1] | HYDRAULIC CYLINDER | KOBAssy, Swing |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTube, Cylinder |
| 3. | LF01V00006S003 | [1] | CYLINDER HEAD | KOB |
| 4. | EN01V00009S004 | [1] | BUSHING | KOB |
| 5. | 2438U716S6 | [1] | SNAP RING | KOB |
| 6. | LF01V00006S006 | [1] | RING | KOBBuffer |
| 7. | 2438U716S15 | [1] | RING | KOBU |
| 8. | YT01V00002S009 | [1] | RING | KOBWiper |
| 9. | ZD12G10000 | [2] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOB |
| 10. | PH01V00022S008 | [1] | RING | KOBBack Up |
| 11. | ZD11G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB |
| 12. | LF01V00006S012 | [1] | HOLDER | KOB |
| 13. | YT01V00017S013 | [2] | SEAL | KOBCushion |
| 14. | LF01V00007S014 | [1] | COLLAR CLAMP | KOBCollar |
| 15. | PZ01V00003S008 | [2] | RING | KOBBack Up |
| 16. | LF01V00007S016 | [1] | BEARING ASSY | KOBBearing, Cushion |
| 17. | YR01V00018S013 | [1] | PISTON | KOB |
| 18. | 2438U676S21 | [1] | RING | KOBSeal |
| 19. | 2438U676S23 | [2] | RING | KOBSlide |
| 20. | YM01V00009S020 | [1] | NUT | KOB |
| 21. | 2438U999S21 | [1] | SET SCREW | KOBSet |
| 22. | 2436U330S16 | [1] | BALL | KOB |
| 23. | LF01V00007S023 | [1] | BEARING ASSY | KOBBearing, Cushion |
| 24. | LF01V00002S024 | [1] | SEAL | KOBCushion |
| 25. | YR01V00006S026 | [1] | RING | KOBSnap |
| 26. | YR01V00006S027 | [2] | STOP | KOBStopper |
| 27. | LF01V00002S027 | [2] | BUSHING | KOB |
| 28. | LP01V00007S026 | [4] | RING | KOBWiper |
| 29. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGrease |
| . . | LF01V00006R100 | [1] | REPAIR KIT | KOBRod Side |
| . . | YR01V00018R200 | [1] | REPAIR KIT | KOBPiston Side |
| . . | LF01V00006R300 | [1] | REPAIR KIT | KOBAll(rod + Piston) |
| . . | LF01V00007R400 | [1] | PIPE | KOBRepair Kit Consists Of Item 1x1, 27x2 |
| . . | LF01V00007R500 | [1] | ROD | KOBRepair Kit Consists Of Item 2x1, 27x2 |
