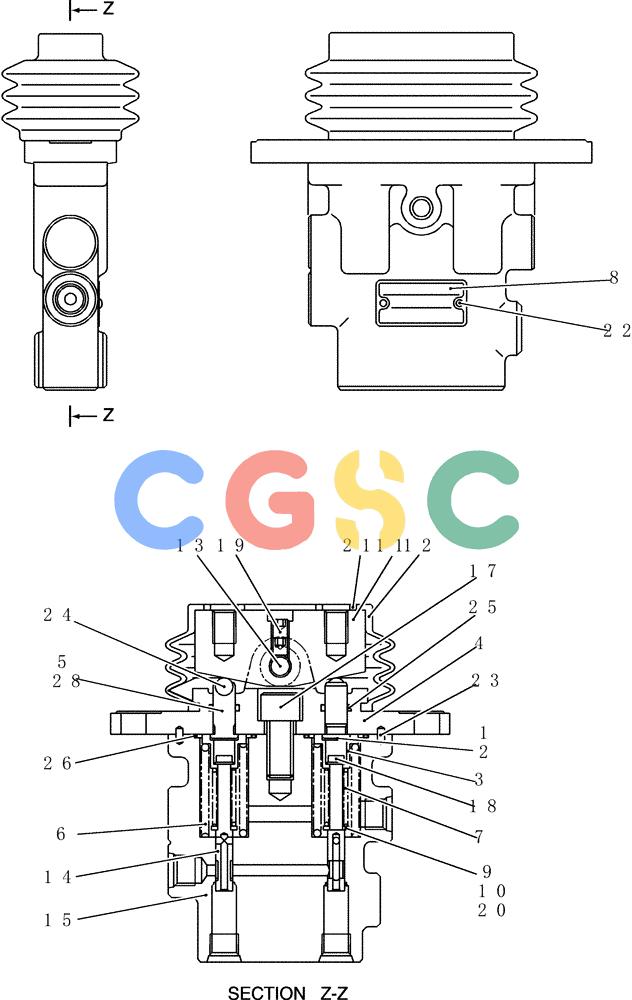

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (HC831-71[1]) - VALVE ASSY, PILOT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
205 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00046F1 | [1] | PILOT VALVE | KOBAssy |
| 1. | 2436U1142S13 | [2] | SHIM | KOB(0. 1) |
| 2. | 2436U1487S7 | [2] | SHIM | KOB(0. 2) |
| 3. | 2436U1354S5 | [2] | SLEEVE | KOB |
| 4. | 2436U1354S6 | [1] | COVER | KOB |
| 5. | NSS | [2] | NOT SERVICED SEPARATELY | CONPusher |
| 6. | YR30V00004S012 | [2] | SPRING | KOB |
| 7. | YR30V00013S009 | [2] | SPRING | KOB |
| 9. | 2436U1354S25 | [2] | SHIM | KOB(0. 2) |
| 10. | YR30V00013S012 | [2] | SHIM | KOB(0. 1) |
| 11. | YN30V00022S015 | [1] | CAM | KOB |
| 12. | YN30V00022S016 | [1] | BOOT | KOB |
| 13. | YN30V00022S017 | [1] | PIN | KOB |
| 14. | YT30V00046S014 | [2] | Spool | |
| 15. | YT30V00046S015 | [1] | Body | |
| 17. | ZS23C12025 | [1] | CAPSCREW,Hex Socket Head, M12 x 52mm | KOBSCREW Cap |
| 18. | 2436U1354S15 | [2] | BOLT | KOB |
| 19. | ZS83C08008 | [2] | SCREW | KOBSet |
| 20. | 2436U1354S16 | [2] | WASHER | KOB |
| 22. | YN30V00080S023 | [2] | SCREW | KOBRivet |
| 23. | 2436U2888S24 | [2] | PIN | KOB |
| 25. | ZD11P01000 | [2] | O-RING | KOB |
| 26. | YN30V00080S029 | [2] | O-RING | KOB |
| 28. | 2436U1354S26 | [2] | PISTON | KOBPusher Assy |
| . . | YT30V00046R100 | [1] | Repair Kit Consists Of Item 14x2, 15x1 | |
