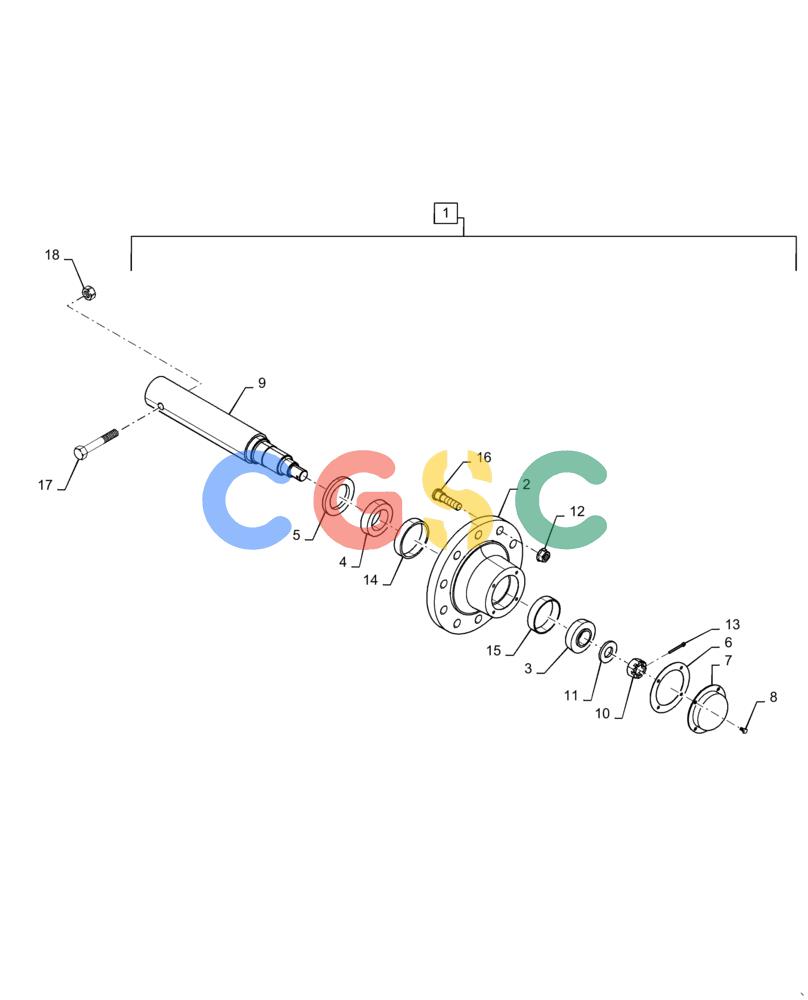

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (44.532.AE[02]) - 760, 950 BUSHEL FRONT AXLE SPINDLE ASSY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47583736
|
[1] |
HUB
|
SAS
Assembly, Complete, Incl 2 - 16
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Hub, Incl in 1
|
| 3. |
9865
|
[1] |
ROLLER BEARING,66.675 mm ID x 38.354 mm
|
FLX
Outer Superseded by part number: ST2111
|
| 4. |
9866
|
[1] |
ROLLER BEARING
|
FLX
Inner Superseded by part number: A50532
|
| 5. |
9864
|
[1] |
OIL SEAL
|
FLX
Hub
|
| 6. |
9861
|
[1] |
GASKET
|
FLX
Rubber
|
| 7. |
87506288
|
[1] |
HUB CAP
|
SAS
Dust
|
| 8. |
7669
|
[4] |
BOLT
|
FLX
Dust Cap Superseded by part number: 1027683
|
| 9. |
47583735
|
[1] |
SPINDLE
|
SAS
Hub
|
| 10. |
51200125
|
[1] |
SLOTTED NUT,2"-12, G5
|
FLX
|
| 11. |
51200133
|
[1] |
WASHER,52mm ID x 101.6mm OD x 6.35mm Thk
|
FLX
Spindle, 1-1/4" ID
|
| 12. |
9790660
|
[10] |
FLANGE NUT,Flg, 3/4"-16, G8
|
WIN
|
| 13. |
2488
|
[1] |
COTTER PIN,3/8" x 3"
|
FLX
Superseded by part number: 86523960
|
| 14. |
9869
|
[1] |
BEARING CUP
|
FLX
Inner Superseded by part number: A50529
|
| 15. |
9868
|
[1] |
BEARING CUP
|
FLX
Outer Superseded by part number: 86577093
|
| 16. |
22792
|
[10] |
STUD
|
FLX
Wheel
|
| 17. |
380422
|
[1] |
BOLT,Hex, M20 x 2.5 x 190mm, Cl 8.8
|
NH
|
| 18. |
725637
|
[1] |
NUT,M20 x 2.5, Cl 8
|
BER
Superseded by part number: 380424
|
