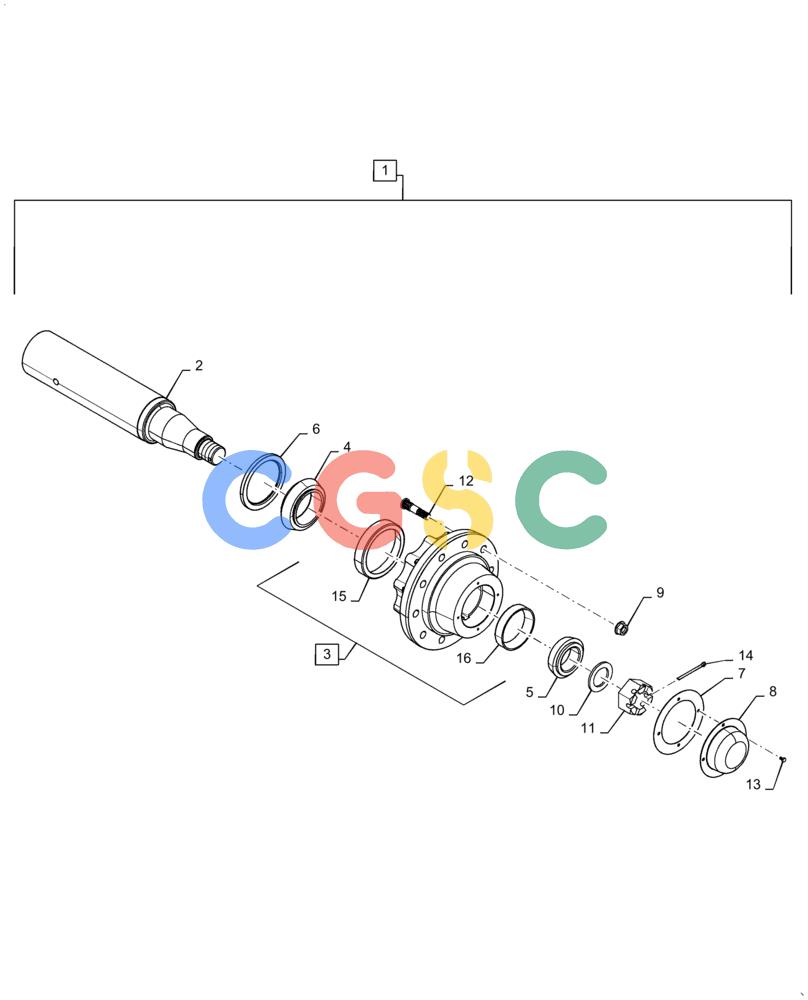

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (44.532.AE[04]) - REAR AXLE HUB WITH DUAL TIRES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47503709
|
[1] |
HUB
|
SAS
Spindle, Incl 2 - 16
|
| 2. |
47503710
|
[1] |
SPINDLE
|
SAS
152.4mm OD x 806mm L
|
| 3. |
47655311
|
[1] |
HUB
|
SAS
Incl 12, 15 - 16
|
| 4. |
47655312
|
[1] |
BEARING CONE
|
SAS
Inner
|
| 5. |
47655313
|
[1] |
BEARING CONE
|
SAS
Outer
|
| 6. |
47655314
|
[1] |
SEAL
|
SAS
Hub, Oil
|
| 7. |
47655315
|
[1] |
GASKET
|
SAS
Rubber
|
| 8. |
47655316
|
[1] |
DUST CAP
|
SAS
Hub
|
| 9. |
47655317
|
[10] |
NUT
|
SAS
|
| 10. |
47655318
|
[1] |
WASHER,2.62" ID x 4" OD x 0.25" Thk
|
SAS
|
| 11. |
47655319
|
[1] |
NUT
|
SAS
Slotted
|
| 12. |
47655320
|
[10] |
STUD
|
SAS
Wheel
|
| 13. |
7669
|
[4] |
BOLT
|
FLX
Dust Cap Superseded by part number: 1027683
|
| 14. |
47658592
|
[1] |
COTTER PIN
|
SAS
|
| 15. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Inner Bearing Cup, Icl in 3
|
