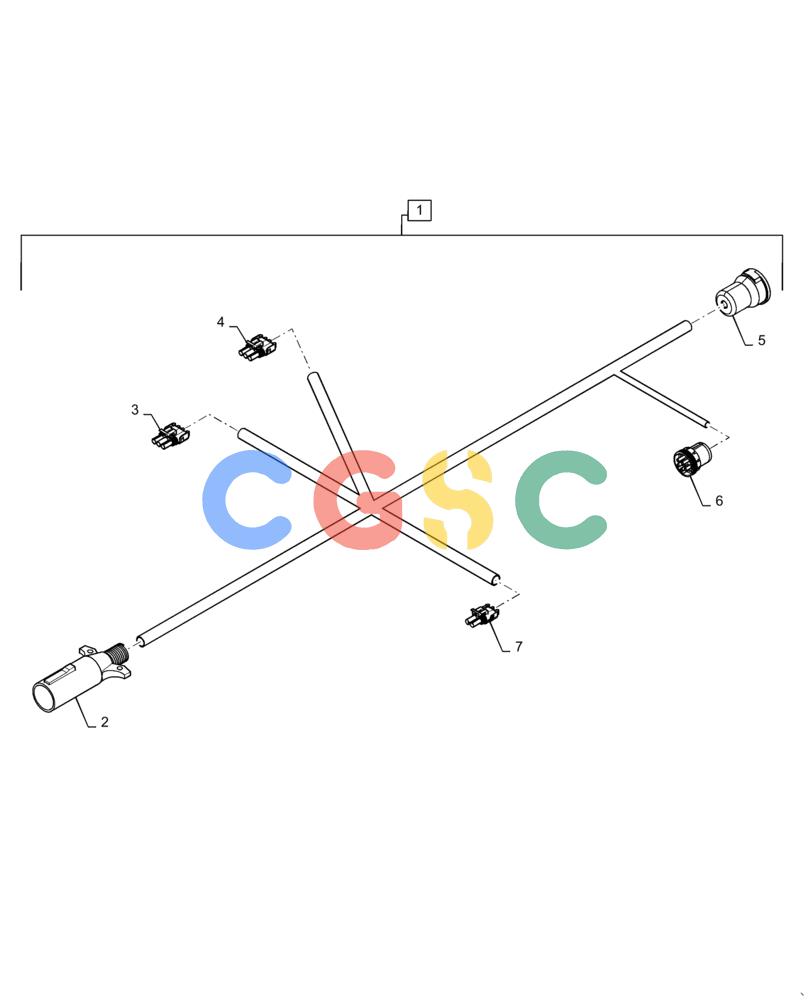

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (55.404.BM[01]) - TOW BEHIND CART LIGHTING HARNESS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47649220
|
[1] |
WIRE HARNESS
|
SAS
Tow Behind Cart Lighting, Complete, Incl 2 - 7 Superseded by part number: 47944780
|
| 2. |
84137504
|
[1] |
MULTIPOLE CONNECTOR,Female, 7 Pole
|
PA
Trailer Connector Superseded by part number: 121646C1
|
| 3. |
87644909
|
[1] |
WIRE CONNECTOR,Female, 3 Pins
|
BN
3 Way, Field Lights
|
| 3. |
87692876
|
[2] |
CABLE TERMINAL,Female, Tin, 1 - 2mm
|
BAS
3 Way, Field Lights Superseded by part number: 225122C1
|
| 3. |
87686742
|
[1] |
PLUG
|
MKT
3 Way, Field Lights
|
| 5. |
84162515
|
[1] |
BOOT
|
SAS
Rubber, Rear Connector
|
| 6. |
87706919
|
[1] |
ELEC CONNECTOR
|
RAC
5 Way Receptacle, Trans Bar
|
| 6. |
86500036
|
[4] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
5 Way Receptacle, Trans Bar
|
| 6. |
87695921
|
[1] |
CONTACT,Female, Nickel, 0.50 - 1.00mm
|
COE
5 Way Receptacle, Trans Bar
|
| 7. |
87692855
|
[1] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
Beacon Light
|
