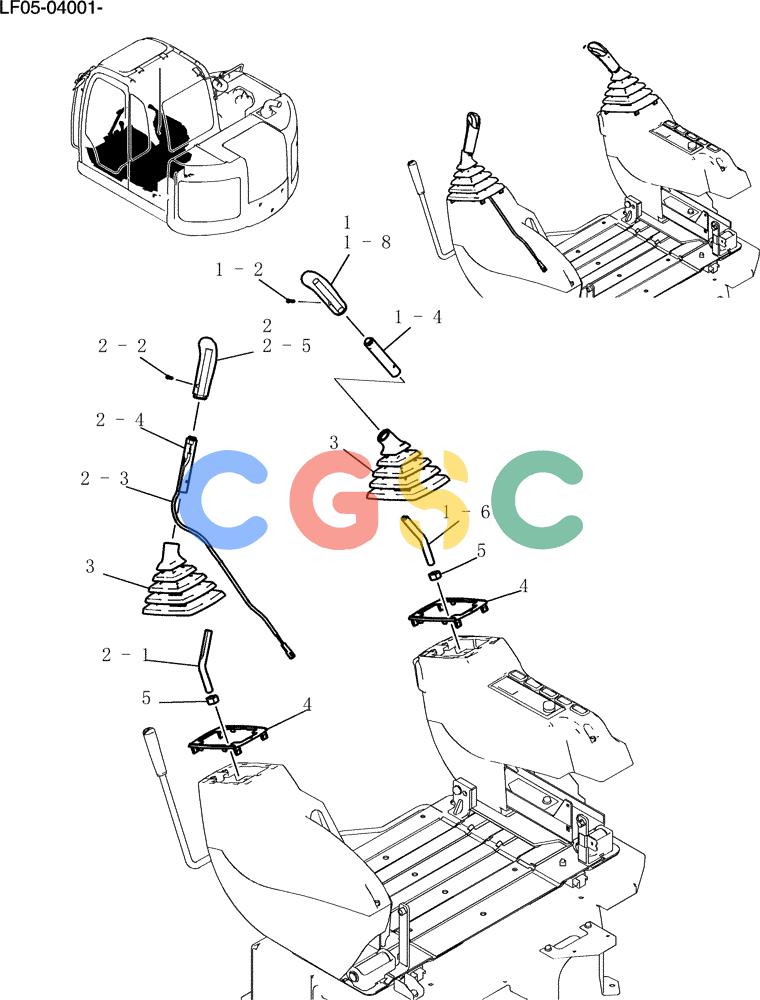

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (127-01[1]) - GRIP ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
344 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN03M01974F1 | [1] | Grip Assy | |
| 1. | YN03M02021F3 | [1] | GRIP | KOBAssy (R.H) |
| 1-2. | YN03M02019P1 | [1] | SCREW | KOBCap |
| 1-4. | YN03M01866P1 | [1] | CASE | KOB |
| 1-6. | YN03M01864P1 | [1] | LEVER | KOB |
| 1-8. | YN03M01972P1 | [1] | GRIP | KOB |
| 2. | YN03M02021F1 | [1] | HANDLE GRIP | SMAssy (L.H) |
| 2-1. | YN03M01865P1 | [1] | LEVER | KOB |
| 2-3. | YN50E00017P1 | [1] | SWITCH ASSY | KOBAssy |
| 2-5. | YN03M01867P1 | [1] | GRIP | KOB |
| 3. | YN03M01498P1 | [2] | BELLOWS | SMBoot |
| 4. | YN03M01328P2 | [2] | PLATE | KOB |
| 5. | ZN18C14011 | [2] | NUT | KOB |
