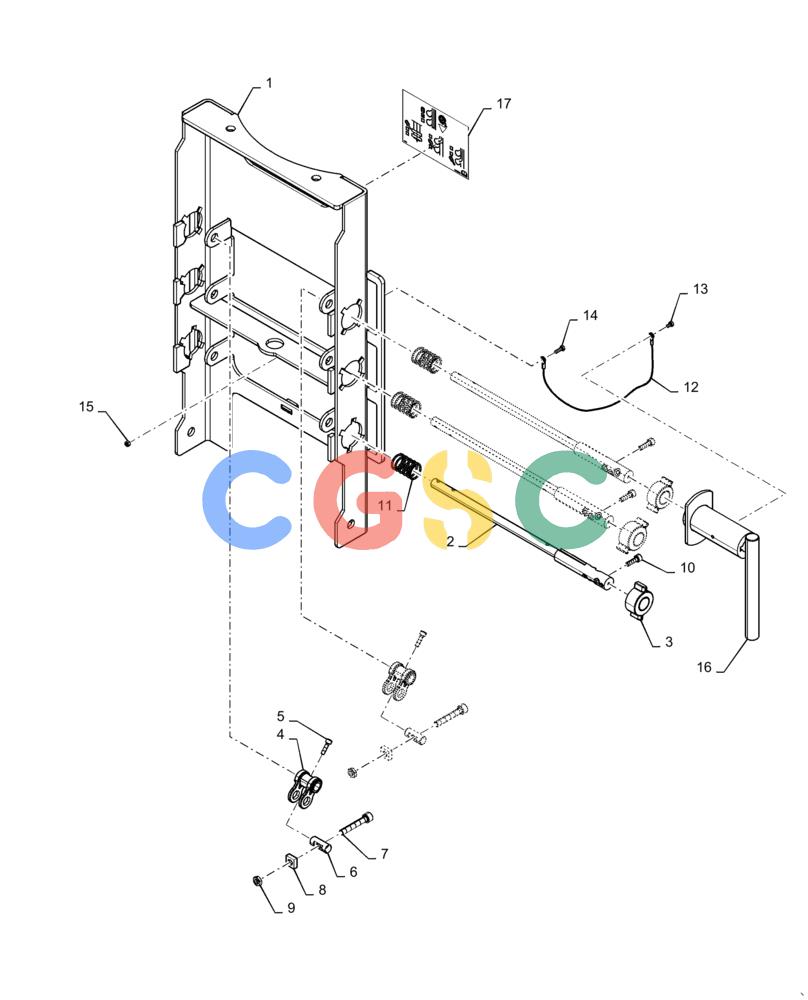

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (61.800.AC[03]) - METER CONTROL BRACKET ASSY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
704 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47776955
|
[1] |
BRACKET
|
SAS
Meter Endplate, TBH
|
| 1. |
47776957
|
[1] |
BRACKET
|
SAS
Meter Endplate, TBT
|
| 2. |
47692039
|
[3] |
SHAFT
|
SAS
Meter Drive, TBH
|
| 2. |
47741748
|
[3] |
SHAFT
|
SAS
Meter Drive, TBT
|
| 3. |
47778250
|
[3] |
COLLAR
|
SAS
Locking
|
| 4. |
47716582
|
[6] |
CLEVIS
|
SAS
Meter Control
|
| 5. |
14358524
|
[6] |
HEX SOC SCREW,M5 x 18mm, Cl 8.8, Full Thd
|
JES
|
| 6. |
47692043
|
[6] |
PIN
|
SAS
Meter Control Shaft
|
| 7. |
73170457
|
[6] |
HEX SOC SCREW,M8 x 50mm, Cl 8.8
|
BER
Superseded by part number:
|
| 8. |
47778306
|
[6] |
SPACER
|
SAS
Meter
|
| 9. |
16102311
|
[6] |
THIN NUT,Thin, M8 x 1.25, Cl 04
|
TTF
Superseded by part number: 103889
|
| 10. |
86531615
|
[3] |
HEX SOC SCREW,M6 x 20mm, Cl 8.8
|
GI
|
| 11. |
47776180
|
[3] |
SPRING
|
SAS
|
| 12. |
47778696
|
[1] |
CABLE
|
SAS
Lanyard
|
| 13. |
10445831
|
[1] |
BOLT,Hex, M4 x 8mm, Cl 10.9, Full Thd
|
LEC
|
| 14. |
10444721
|
[1] |
BOLT,Hex, M4 x 14mm, Cl 8.8, Full Thd
|
LEC
|
| 15. |
385681
|
[1] |
NUT,M4 x 0.7, Cl 8
|
MKT
|
| 16. |
47716575
|
[1] |
HANDLE
|
SAS
Meter Control
|
| 17. |
47681087
|
[1] |
DECAL
|
SAS
RH, Meter Control TBH
|
| 17. |
47681089
|
[1] |
DECAL
|
SAS
RH, Meter Control TBT
|
| 17. |
47681088
|
[1] |
DECAL
|
SAS
LH, Meter Control TBH
|
| 17. |
47681090
|
[1] |
DECAL
|
SAS
LH, Meter Control TBT
|
| 18. |
280299
|
[2] |
WASHER,0.19" ID x 0.44" OD x 0.05" Thk
|
NH
|
