神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (06-005) - SPRING ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
977 次

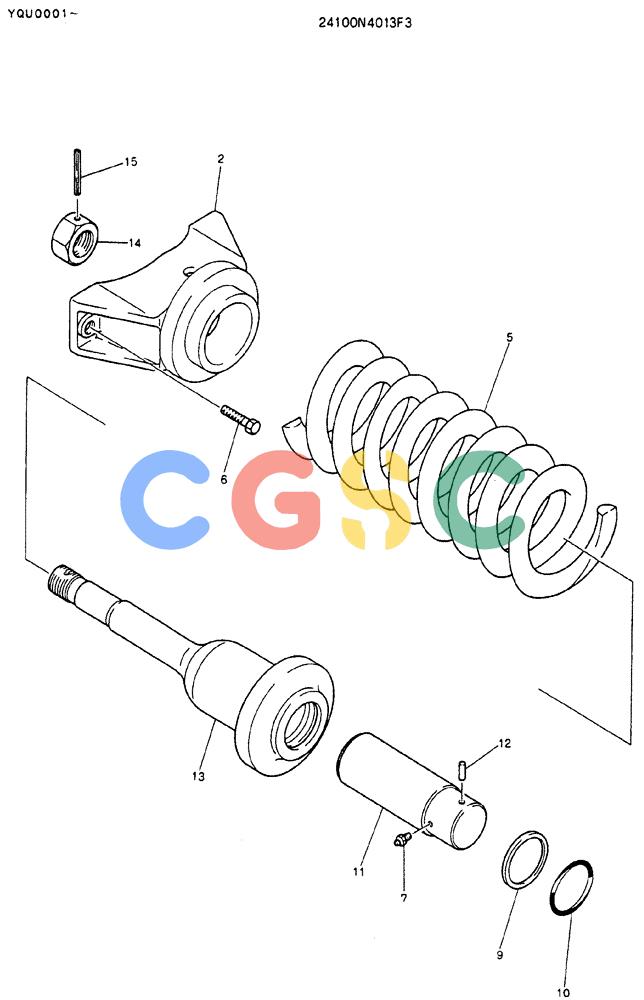

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4013F3 | [1] | TRACK ASSY | KOB |
| 2. | 2416N3302 | [1] | U-BRACKET | KOB |
| 5. | 2417P261 | [1] | SPRING | KOB |
| 6. | ZS13C16045 | [2] | SCREW | KOBScrew -- M16x2.0x45mm |
| 7. | 2444R923 | [1] | LUBE NIPPLE | KOBLube -- 5/8" - 18 UNF, Straight Superseded by part number: 2444P803 |
| 9. | 2418U130D35 | [1] | PACKING | KOBSEAL, OIL |
| 10. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOBID 79.40 ± 0.69 x OD 85mm |
| 11. | 2439P173 | [1] | PISTON | KOB |
| 12. | 2419T4748 | [2] | PIN | KOB Superseded by part number: LQ54D01023P1 |
| 13. | 2438N253 | [1] | CYLINDER | KOB |
| 14. | 2420T4548 | [1] | NUT | KOB |
| 15. | ZP26D08070 | [1] | ROLL PIN | KOB |
