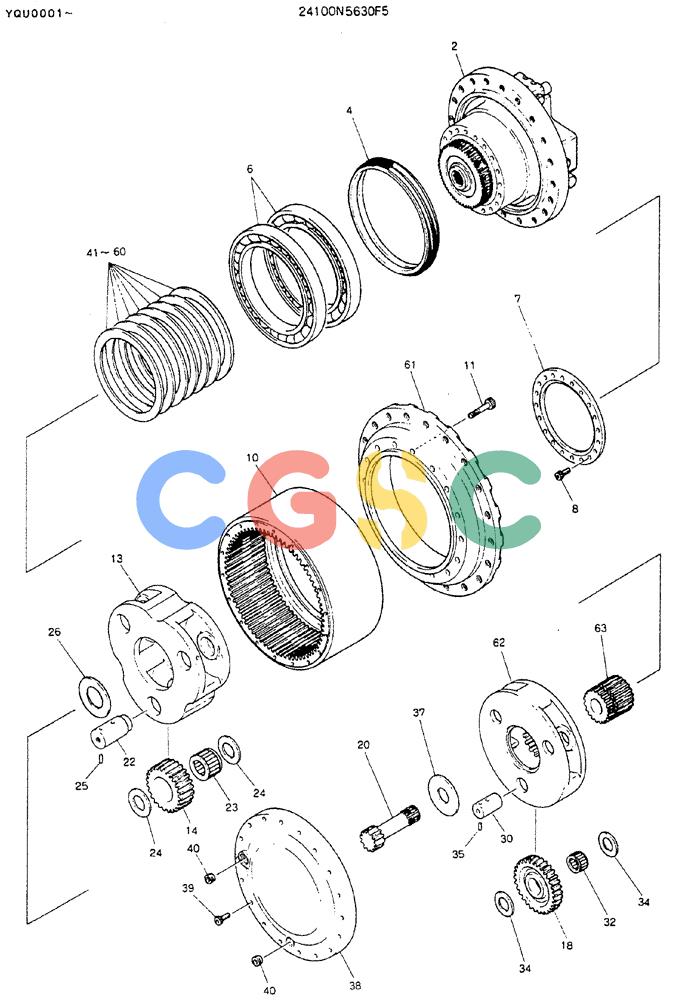

神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (06-006) - REDUCTION UNIT(PROPEL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5630F5 | [1] | GEAR REDUCTION UNIT | KOB |
| 2. | 2441U783F3 | [1] | ENGINE | KOBSEE (C.P.M.) Superseded by part number: 2441U783F4 |
| 4. | ZD57F30040 | [1] | SEAL | KOB Superseded by part number: ZD58F30040 |
| 6. | 2425R217 | [2] | BEARING | KOB |
| 7. | 2418N4691 | [1] | RETAINER | RETAINER |
| 8. | ZS23C10030 | [18] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 10. | 2401N463 | [1] | RING GEAR | KOB |
| 11. | ZS23C16075 | [18] | SCREW,Hex Socket Head, M16 x 75mm | KOBM16x2.0x75mm |
| 13. | 2413N438 | [1] | AIR COMPRESSOR | AIR COMPRESSOR |
| 14. | 2401P1154 | [3] | PINION | KOB |
| 18. | 2401P1155 | [3] | PINION | KOB |
| 20. | 2401P1240 | [1] | SUN GEAR | KOB |
| 22. | 2410P784 | [3] | ROLLER SHAFT | KOB |
| 23. | 2425Z529 | [3] | NEEDLE BEARING | KOB |
| 24. | 2418T17249 | [6] | WASHER | KOB |
| 25. | ZP26D06032 | [3] | ROLL PIN | KOB |
| 26. | 2418P20098 | [1] | SPACER | KOB |
| 30. | 2410T331 | [3] | ROLLER SHAFT | KOB |
| 32. | 2425Z531 | [3] | NEEDLE BEARING | KOB |
| 34. | 2418T18790 | [6] | THRUST WASHER | KOB |
| 35. | ZP26D05028 | [3] | PIN,5mm OD x 28mm L, Slotted | KOBSpring |
| 37. | 2418P20096 | [1] | SPACER | KOB |
| 38. | 2414N3725 | [1] | COVER | KOB |
| 39. | ZS23C10025 | [16] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 40. | ZE82T12000 | [2] | PLUG | KOB3/4" PT |
| 41. | 2420P1534D1 | [1] | SHIM | KOB1.1 |
| 42. | 2420P1534D2 | [1] | SHIM | KOB1.2 |
| 43. | 2420P1534D3 | [1] | SHIM | KOB1.3 Superseded by part number: 2420P1534D4 |
| 44. | 2420P1534D4 | [1] | SHIM | KOB1.4 |
| 45. | 2420P1534D5 | [1] | SHIM | KOB1.5 |
| 46. | 2420P1534D6 | [1] | SHIM | KOB1.6 |
| 47. | 2420P1534D7 | [1] | SHIM | KOB1.7 |
| 48. | 2420P1534D8 | [1] | SHIM | KOB1.8 |
| 49. | 2420P1534D9 | [1] | SHIM | KOB1.9 |
| 50. | 2420P1534D10 | [1] | SHIM | KOB2.0 |
| 51. | 2420P1534D11 | [1] | SHIM | KOB2.1 |
| 52. | 2420P1534D12 | [1] | SHIM | KOB2.2 |
| 53. | 2420P1534D13 | [1] | SHIM | KOB2.3 |
| 54. | 2420P1534D14 | [1] | SHIM | KOB2.4 |
| 55. | 2420P1534D15 | [1] | PIN | KOB2.5 |
| 56. | 2420P1534D16 | [1] | SHIM | KOB2.6 |
| 57. | 2420P1534D17 | [1] | SHIM | KOB2.7 |
| 58. | 2420P1534D18 | [1] | SHIM | KOB2.8 |
| 59. | 2420P1534D19 | [1] | SHIM | KOB2.9 |
| 60. | 2420P1534D20 | [1] | SHIM | KOB3.0 |
| 61. | 2418N3257 | [1] | HUB | KOB |
| 62. | 2413N447 | [1] | AIR COMPRESSOR | AIR COMPRESSOR |
| 63. | 2401P1292 | [1] | SUN GEAR | KOB |
