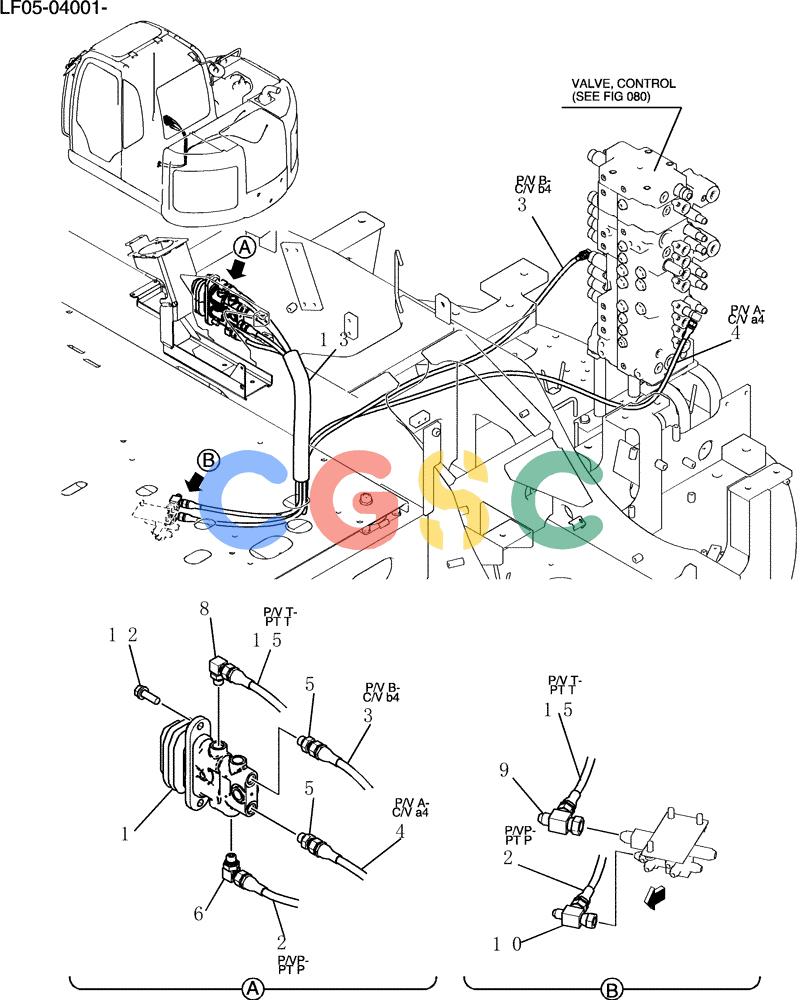

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (142-71[1]) - CONTROL LINES, REMOTE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1019 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT68H00064F1 | [1] | Control Lines, Remote | |
| 1. | YT30V00046F1 | [1] | PILOT VALVE | KOBAssy |
| 2. | 2420R349D100 | [1] | HOSE | KOB Superseded by part number: HX21E04100DX |
| 3. | 2420R349D210 | [1] | FLEXIBLE HOSE | KOB |
| 4. | 2420R349D240 | [1] | HOSE,2400.00 mm | KOB Superseded by part number: HX21E04240DX |
| 5. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| 6. | HH35X04004G3 | [1] | 90 ELBOW | KOB(with Filter) |
| 8. | ZH32X04000 | [1] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow |
| 9. | 2444T2592 | [1] | TEE | KOB |
| 10. | 2444Z2544 | [1] | TEE | KOB |
| 12. | HM83C10030G1 | [2] | BOLT | KOBSems |
| 13. | YN68H01106P1 | [1] | COVER | KOB |
| 15. | 2420R349D105 | [1] | HOSE,1050.00 mm | KOB |
