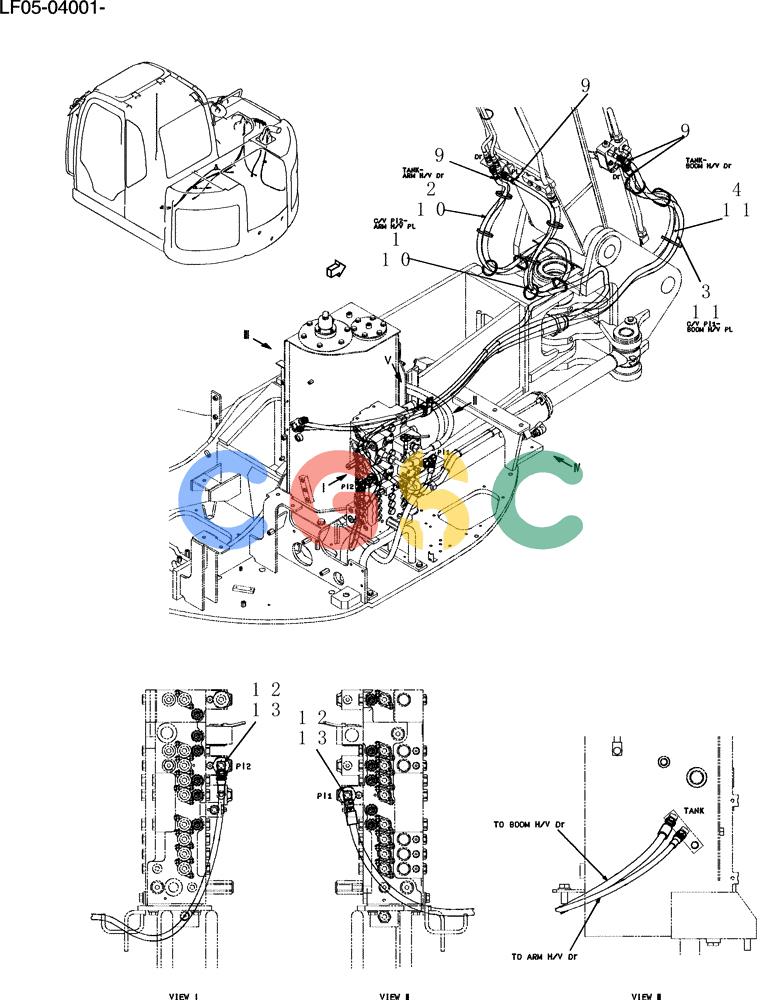

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (153-16[1]) - CONTROL LINES, VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF64H00029F1 | [1] | Control Lines, Valve | |
| . . | LF64H00016F1 | [1] | TUBE | KOBControl Lines, Valve (See Fig No.152-17-1) |
| . . | YT64H00105F1 | [1] | Control Lines, Valve (See Fig No.152-17-1) | |
| . . | LF64H00017F1 | [1] | TUBE | KOBControl Lines, Valve |
| 1. | 2420R537D420 | [1] | HOSE,9.60mm ID x 4200mm L | KOB |
| 2. | 2420R537D330 | [1] | HOSE ASSY.,9.60mm ID x 3300mm L | KOB |
| 3. | ZX23M06360 | [1] | HOSE ASSY. | KOB |
| 4. | ZX23M06320 | [1] | HOSE ASSY. | KOB |
| 5. | YX32H01011P1 | [1] | BUSHING,33mm ID x 49mm OD x 50mm L | KOB |
| 6. | PY01P01043D8 | [11] | CABLE TIE,102mm L | KOB |
| 7. | ZC45X46014 | [1] | CLIP | KOBClip Superseded by part number: ZC46X46014 |
| 8. | ZM73C10020 | [1] | BOLT,M10x20mm - Course Thread | KOBSems |
| 9. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOB |
| 10. | PU13E01010D5 | [2] | TUBE | KOB |
| 11. | 2418Z1333D35 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1800mm Length | KOB |
| 12. | 2444Z2338 | [2] | ELBOW | KOB |
| 13. | 2444Z2461 | [2] | TEE | KOB |
