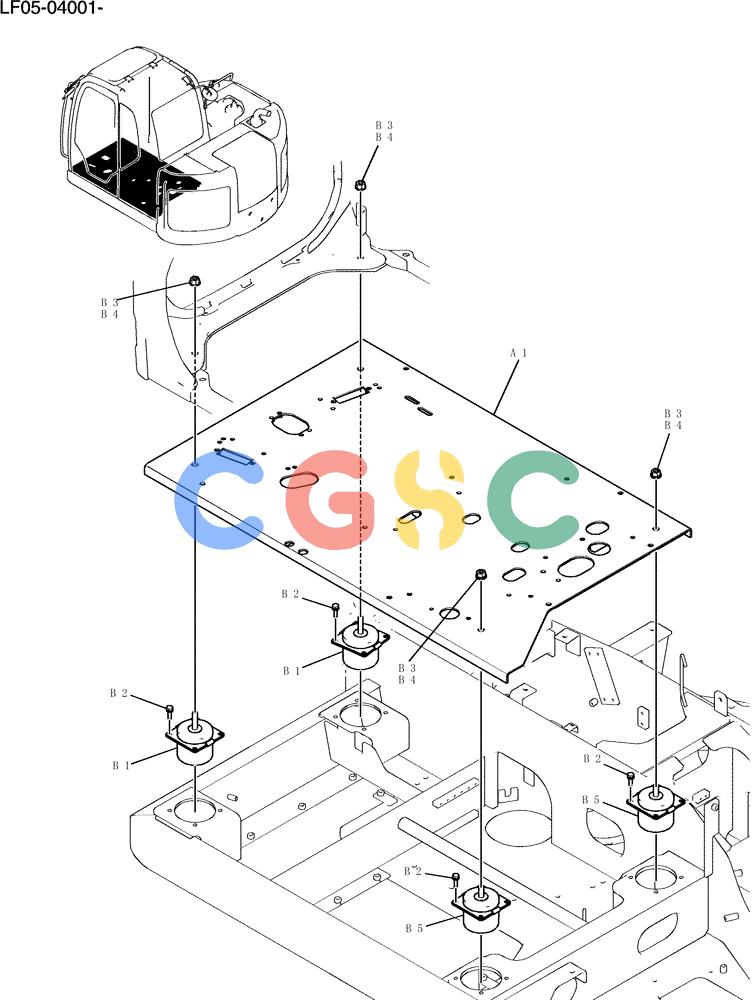

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (170-01[1]) - PLATE INSTAL, FLOOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
361 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT03M00058F1 | [1] | Plate Instal, Floor | |
| A1. | YT03M00061P1 | [1] | Plate, Floor | |
| . . | YY03M00047F1 | [1] | Plate Instal, Floor | |
| B1. | YN03M01695P1 | [2] | SILENTBLOC,110mm OD x 171mm L | KOBMount, Rubber |
| B2. | ZM22C10035 | [16] | BOLT | KOBSems-bolt |
| B3. | ZN18C16013 | [4] | NUT | KOB |
| B4. | ZW16H16000 | [4] | WASHER | KOB |
| B5. | YN03M01245P1 | [2] | ENGINE MOUNT | KOBRubber |
