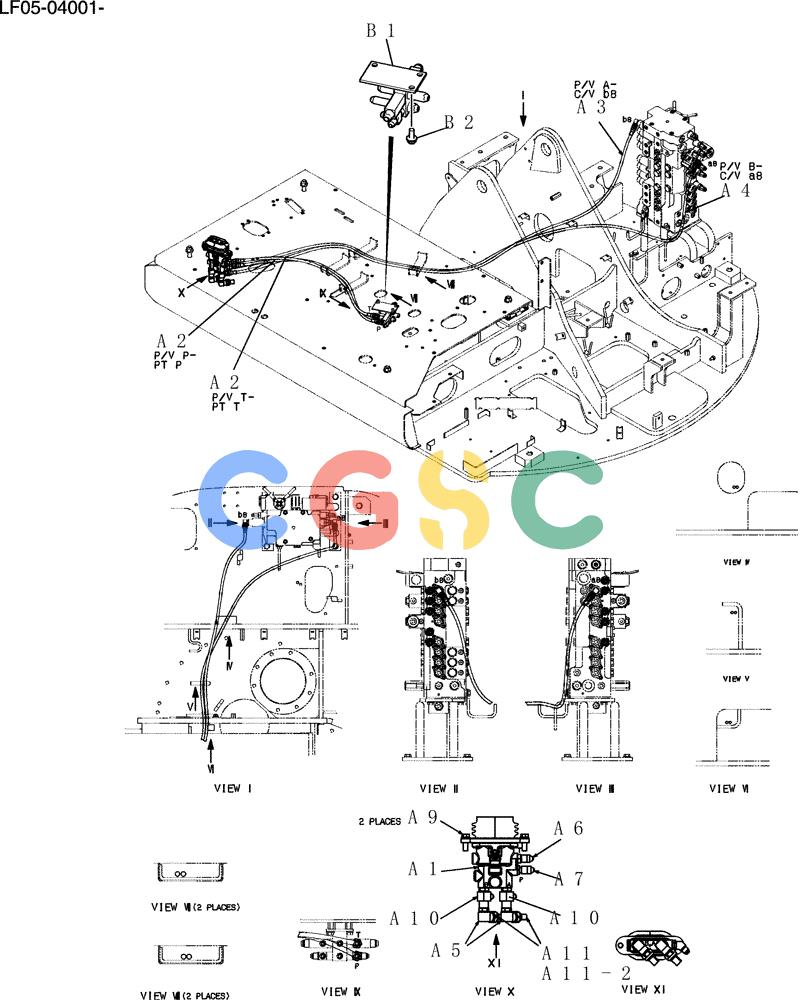

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (162-60-1[1]) - CONTROL LINES, REMOTE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
947 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT68H00076F1 | [1] | Control Lines, Remote | |
| A1. | YR30V00020F1 | [1] | VALVE | KOBAssy, Pilot |
| A2. | 2420R349D092 | [2] | HOSE | KOB Superseded by part number: 2420R349D095 |
| A3. | 2420R349D250 | [1] | HOSE,2500.00 mm | KOB |
| A4. | 2420R349D270 | [1] | HOSE | KOB |
| A5. | 2444Z2894 | [2] | 90 ELBOW | KOBElbow |
| A6. | ZH42X04000 | [1] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow |
| A7. | HH45X04004G5 | [1] | ELBOW | KOBElbow (with Filter) |
| A9. | HM83C10030G1 | [2] | BOLT | KOBSems |
| A10. | 2444Z2461 | [2] | TEE | KOB |
| A11. | YX52S00013P1 | [2] | SENSOR | SMPress (L.P.) Superseded by part number: LC52S00019P1 |
| A11-2. | ZD12P01100 | [1] | O-RING | KOB |
| . . | YF64H00057F1 | [1] | Control Lines, Block | |
| B1. | YN64H01338P1 | [1] | BLOCK | SM |
| B2. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBSems |
